KM048-025-TEE-B - Datasheet
MBA
Category Information

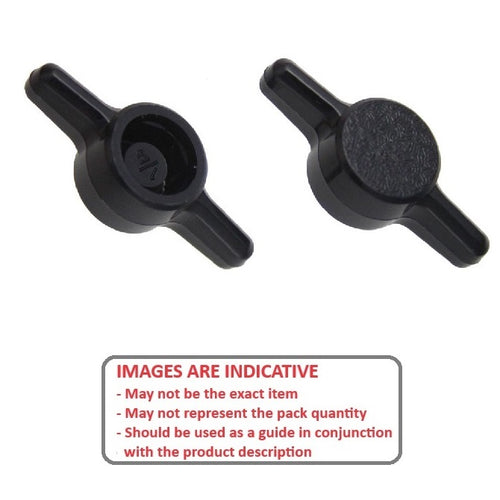

Knobs - Thumb - For Cap ScrewsFor Cap Screws Thumb Knobs. Four Types and four colours to fit onto Socket Head Cap Screws.
- An expanded range may be available on special order. Please enquire.
- To fit Socket Head Cap Screws (Order Separately)
- Choice of 4 Colours.
- Choice of 4 styles.
- Made From Acetal Resin.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Cap Screw Thread : 10-24, 10-32 (4.76mm) - Use Own Screw

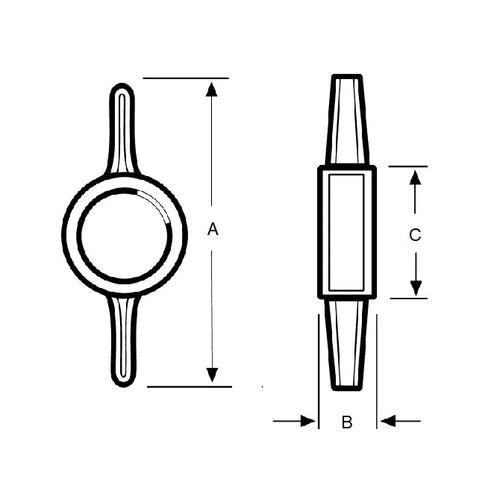

- Head Diameter (A)
25.40
mm
(Equiv. 1 in.) - Thickness (B)
6.4
mm
(Equiv. 0.252 in.) - Colour Black
- Style Tee
- Hub Diameter (C) 11.113 mm
- Material Plastic
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94052A051-BLACK
- A 9M41-B8398923
- 94052A051BLACK
