ACE1075MRS - Datasheet
ACE
Category Information

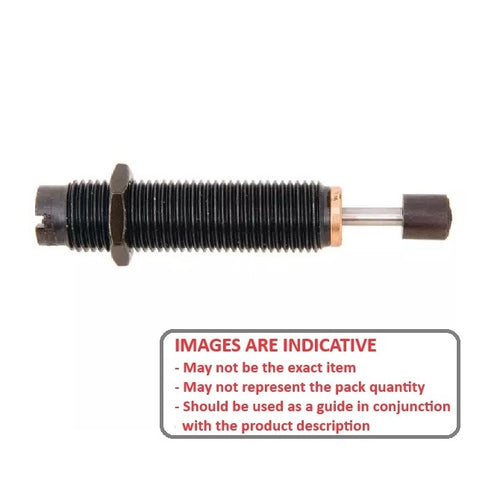

Shock Absorbers - Self-CompensatingSelf-Compensating Shock Absorbers. This is the main category in this series
Product Data

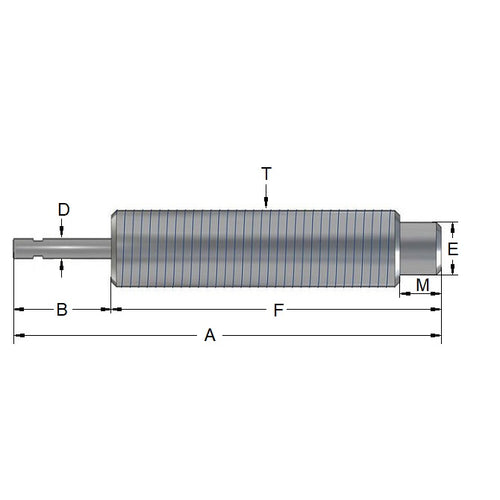

- Stroke
:
10.2
mm
(Equiv. 0.402 in.) - Thread (T) M12x1.0
- Length (A/F)
67.70 / 44.20
mm
(Equiv. 2.665 in.) - Shaft Diameter (D) 3.30 mm
- Effective Weight 2.72 - 36.29 KG
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE1075M
- ACE-1075M
