ACE1075RS - Datasheet
ACE
Category Information
Shock Absorbers - Self-CompensatingSelf-Compensating Shock Absorbers. This is the main category in this series
Product Data

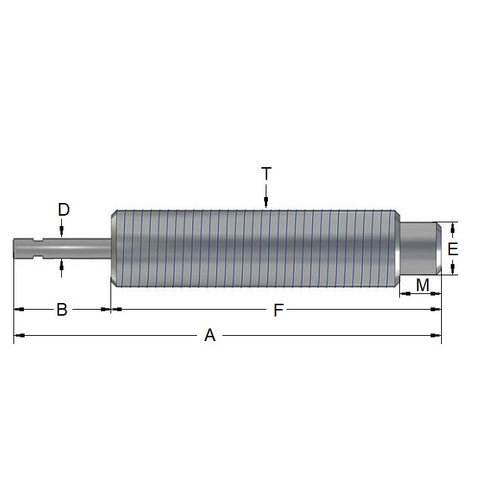

- Stroke
:
10.16
mm
(Equiv. 0.4 in.) - Thread (T) M12x1.0
- Length (A/F)
70.10 / 44.20
mm
(Equiv. 2.76 in.) - Shaft Diameter (D) 3.30 mm
- Effective Weight 2.72 - 36.29 KG
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE1075
- ACE-1075
