SHLD100-006-SLL-C - Datasheet
MBA
Category Information

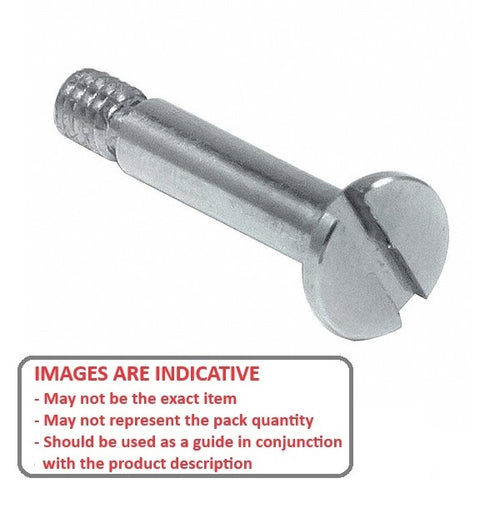

Screws - Shoulder - Slotted Shallow Head - Carbon SteelCarbon Steel Slotted Shallow Head Shoulder Screws. Hardened
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data
- Shoulder Diameter (E)
:
10.000
mm
(Equiv. 0.394 in.) - Shoulder Length (A)
6.000
mm
(Equiv. 0.236 in.) - Thread (D) M8x1.25
- Max. Thread Length (S) 10.00 mm
- Head Height (H) 3.80 mm
- Head Diameter (D) 16.00 mm
- Slotted Drive
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 97505A137
- MD0923MCO08X006
