BF0060-0100-0050-DP - Datasheet

MBA

Category Information

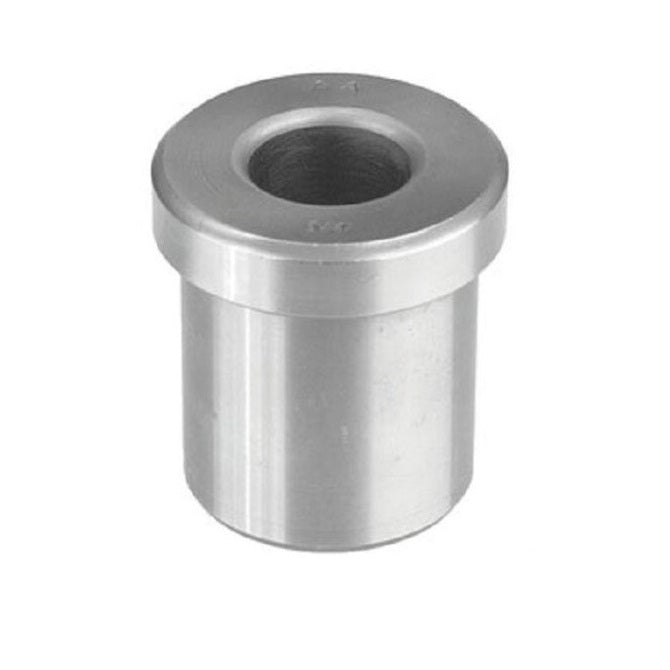

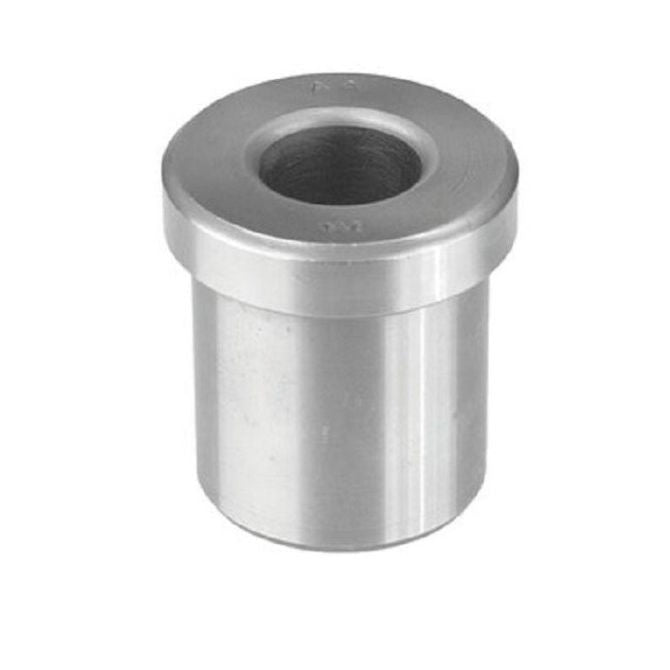

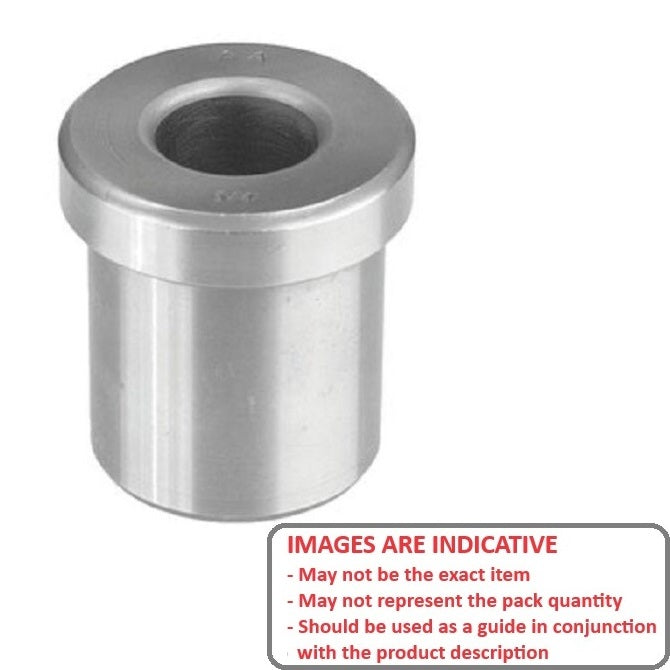

Bushings - Drill - Flanged - Press Fit

Press Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.

  • Hardness: RC 62-64

Product Data

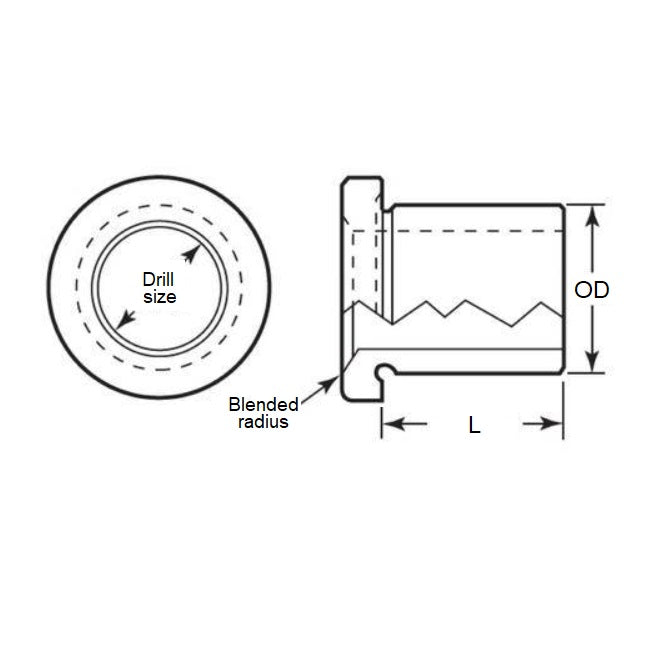

  • Outside Diameter (OD) : 10 mm
    (Equiv. 0.394 in.)
  • Drill Size 6.000 mm
    (Equiv. 0.236 in.)
  • Length 5.000 mm
    (Equiv. 0.197 in.)
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi C-JBHM6-5
    • CJBHM65
