BF0060-0100-0150-DP - Datasheet
MBA
Category Information

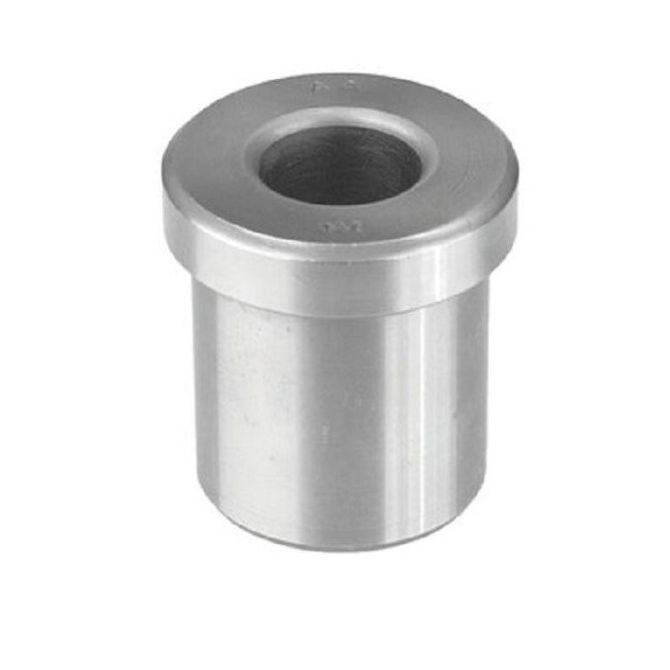

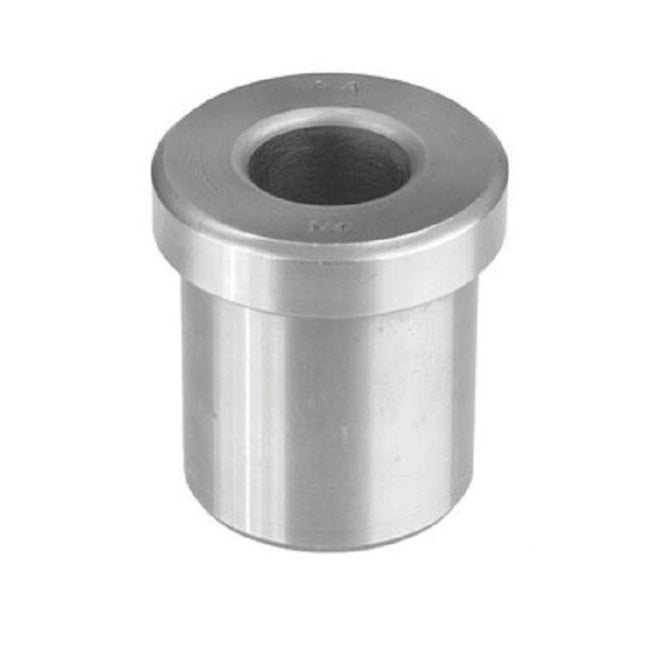

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD) : 10 mm
- Drill Size 6.000 mm
- Length 15.000 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-JBHM6-15
- CJBHM615
