ES-1000-0300-16-M - Datasheet
MBA
Category Information

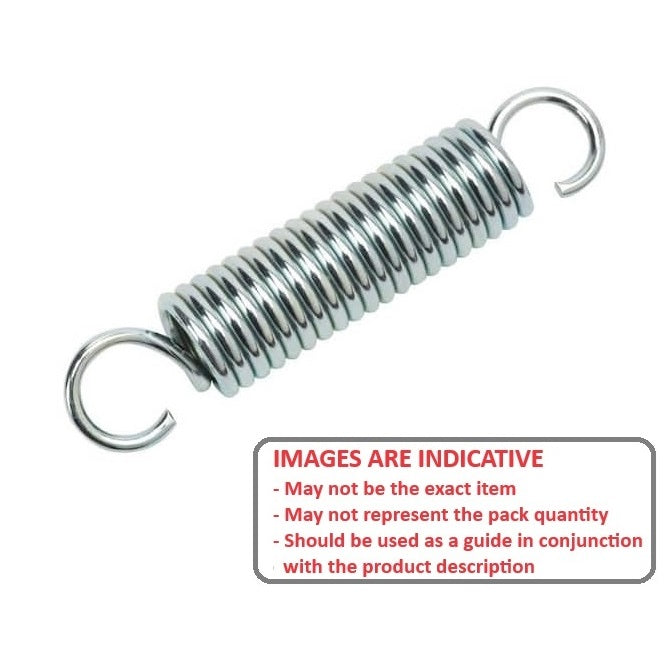

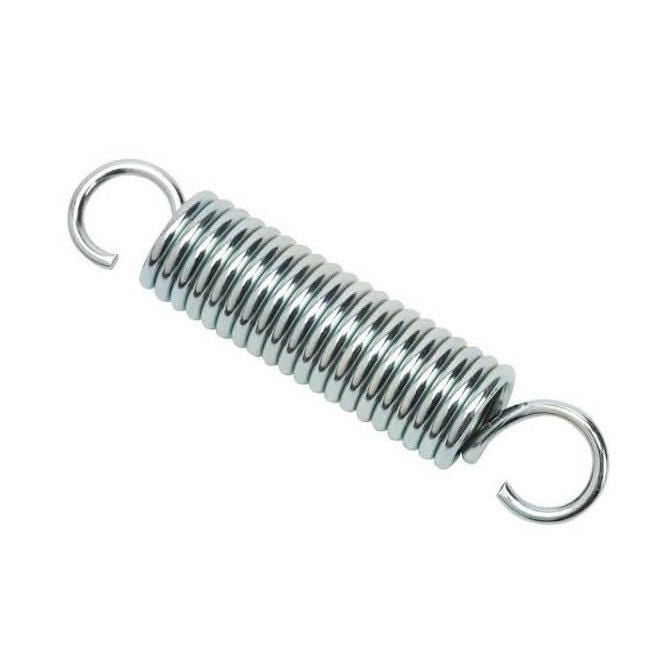

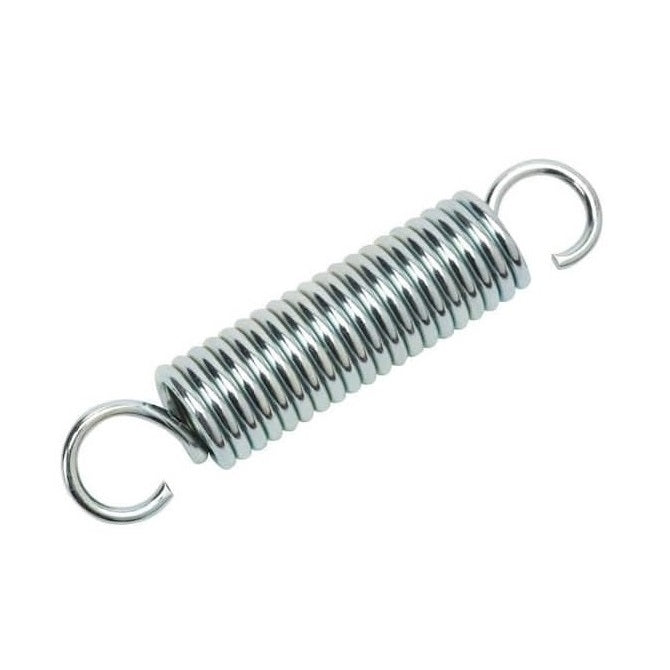

Springs - Extension - Music WireMusic Wire Extension Springs. Carbon spring steel, zinc plated selection.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

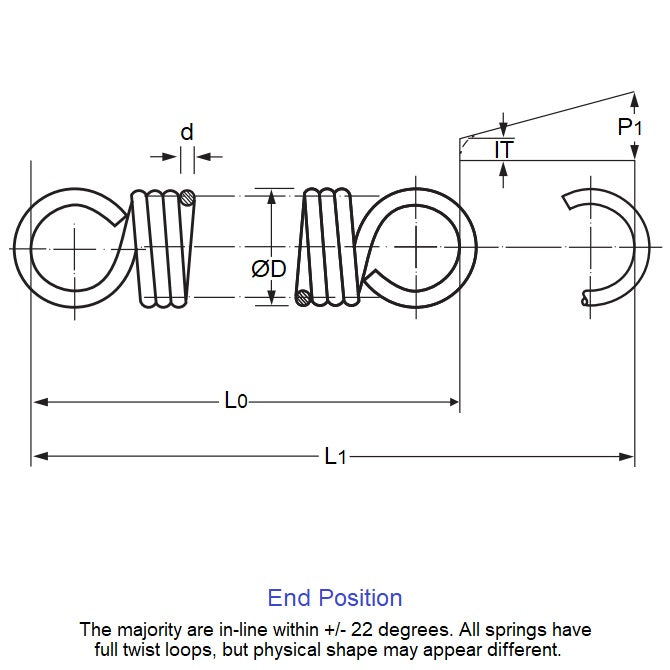

Product Data
- OD (D0)
:
10.00
mm
(Equiv. 0.394 in.) - Overall Length (L0)
30
mm
(Equiv. 1.181 in.) - Wire Diameter (d)
1.600
mm
(Equiv. 0.063 in.) - Max. Extension (L1) 35.20 mm
- Spring Rate 10.89 N/mm
- Initial Tension (IT) 20.6 N
- Load at L1 77.47 N
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-AWT10-30
- Misumi C-WAWT10-30
- CWAWT1030
- CAWT1030
