SHLD101-016-SKT-M8-S3 - Datasheet

MBA

Category Information

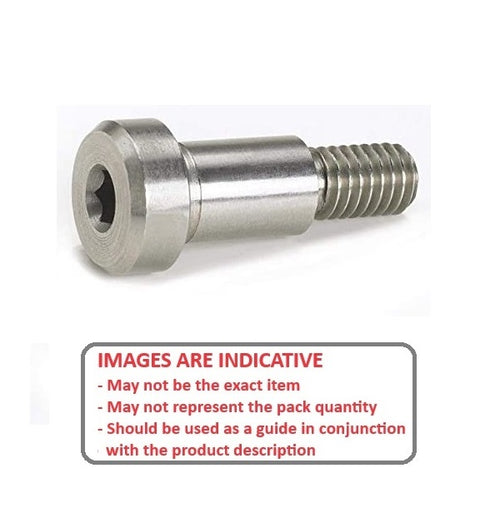

Screws - Shoulder - Socket Head - 303 Stainless

303 Stainless Socket Head Shoulder Screws. 303 Stainless Steel

  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

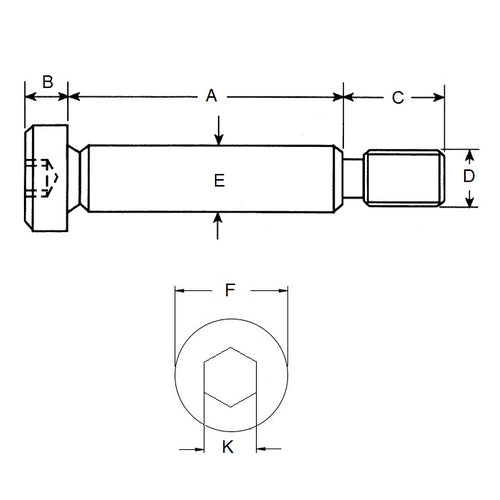

  • Shoulder Diameter (E) : 10.000 mm + 0.018 / + 0.032
    (Equiv. 0.394 in.)
  • Shoulder Length (A) 16.000 mm
    (Equiv. 0.63 in.)
  • Thread (D) M8x1.25
  • Max. Thread Length (C) 12.00 mm
  • Head Height (B) 7.00 mm
  • Head Diameter (F) 14.00 mm
  • Allen Key Size 5.00 mm
  • Notes Oversized Shoulder Diameter
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: US
