W0100-LK-021-025-LR-CZ - Datasheet
MBA
Category Information

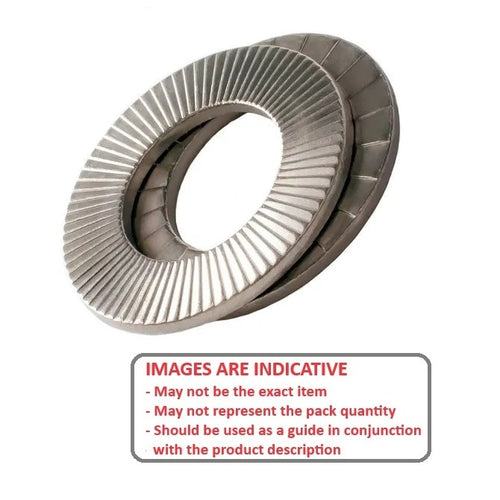

Washers - LockRite - Corrosion ResistantCorrosion Resistant LockRite Washers. Carbon steel with Delta Protekt coating.
- LockRite© washers offer resistance to self loosening during vibration & fluctuating loads. An expanded range may be available on special order. Please enquire.
- They wedge each other and lock themselves, utilizing tension leading to a secure bolted joint.
- Supplied in pairs. Assembled in pairs, cam face to cam face.
- Locking function not affected by lubrication. Eliminates the need for adhesives. Reusable.
- Can be used with fasteners up to grade 12.9.

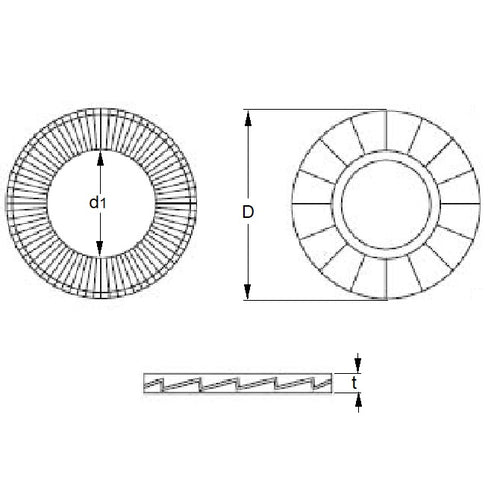

Product Data
- Nominal Inside Diameter (d1)
:
10.0
mm
(Equiv. 0.394 in.) - Nominal Outside Diameter (D)
21.1
mm
(Equiv. 0.831 in.) - Thickness (t) Per Pair - 2.5 mm
- 64.00
- Info Sold per pair
- 10.3
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- LockRite LR211125
- WASCA LR211125
- Nordlock NL10SP
