CMB010-10-040M-R45 - Datasheet
MBA
Category Information

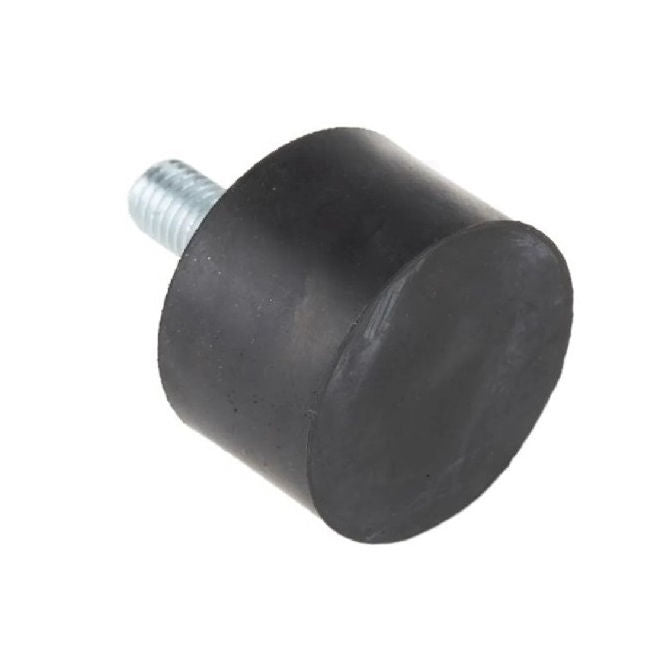

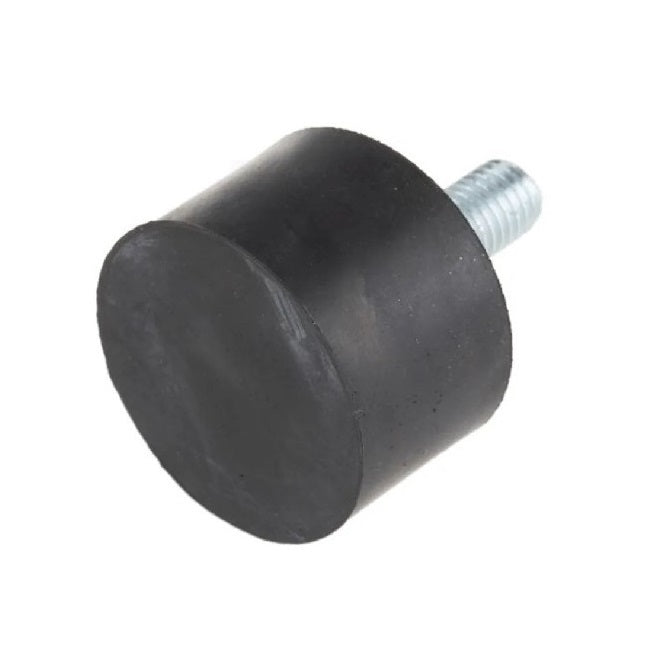

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nom. Body Diameter (D) : 10.0 mm
- Body Height (H) 10.0 mm
- Thread Size (G) M4x0.7
- Shore Hardness 45
- Thread Length (L1) 10.0 mm
- Compression Load 9.5 Kg
- Deflection 2.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 1010MFB10-45-M4
- 1010MFB1045M4
