Miniature Bearings Australia
DVT1-0927-HSH - Datasheet
MBA
Category Information

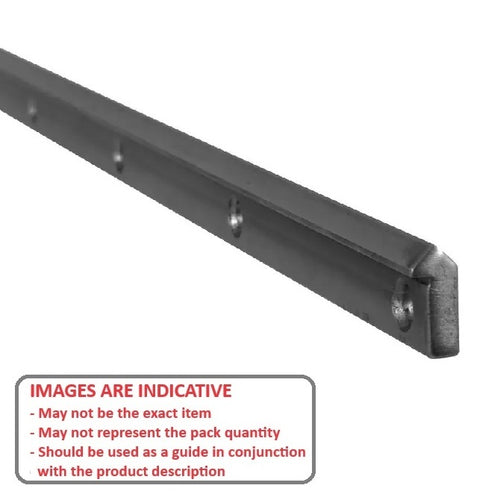

Dual Vee - Tracks - Stainless SteelStainless Steel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.
- Match Track Size with same size Guide Wheel.
Product Data

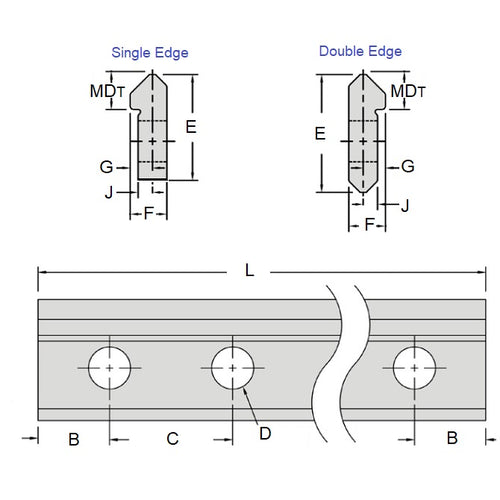

- Track Size : 1
- Overall Length (L)
927.1
mm
(Equiv. 36.5 in.) - Overall Width (F)
4.75
mm
(Equiv. 0.187 in.) - Height (E / MDT) 11.11 / 3.18 mm
- Type Single Edged
- Hole Spacing (C) 50.8 mm
- Number of Holes 19 (3.96mm)
- End Hole Spacing (B) 6.35 mm
- Condition Hardened Rc 48-50
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- WZ-26
- WZ26
- A7W1513650
- A7W15-13650
- A7W15M13650
