RCL-018-038-Z - Datasheet
MBA
Category Information

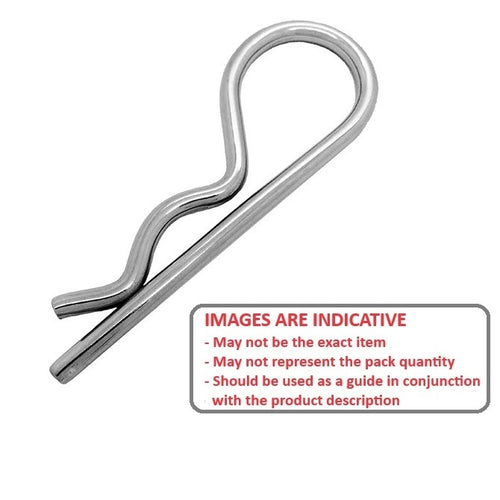

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

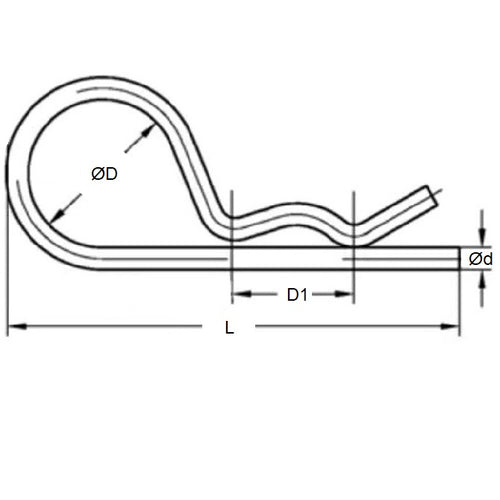

- Wire Thickness (d)
:
1.80
mm
(Equiv. 0.071 in.) - Length (L)
38.0
mm
(Equiv. 1.496 in.) - Material Zinc Plated
- Drill Hole Size 2.20 mm
- Inside Eye Diameter (D) 7.50 mm
- Shaft Size Range 8.00 to 13.00 mm
- Approx. Bridge Length (D1) 12 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPS1832
- RPS1.8-32
