FP-10RS - Datasheet

MBA

Category Information

Eye Bolts - Threaded Shank - Plain - Carbon Steel

Carbon Steel Plain Threaded Shank Eye Bolts. Forged self coloured carbon steel.

  • Forged self coloured carbon steel.
  • Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.

Product Data

  • Thread Size : 1-8 UNC (25.4mm)
  • Shank Length 63.500 mm
    (Equiv. 2.5 in.)
  • Eye Inside Diameter 46.038 mm
    (Equiv. 1.813 in.)
  • Rated Capacity 4082 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3013T55
    View full details

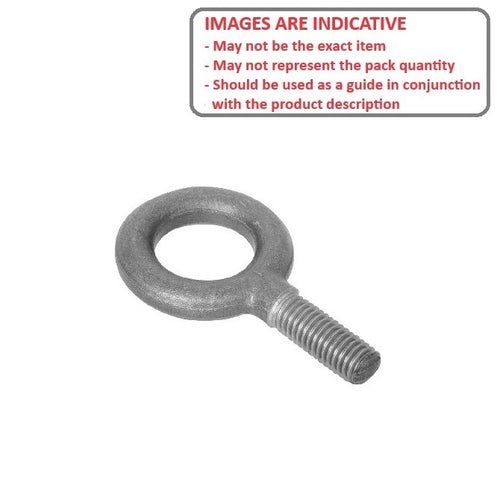

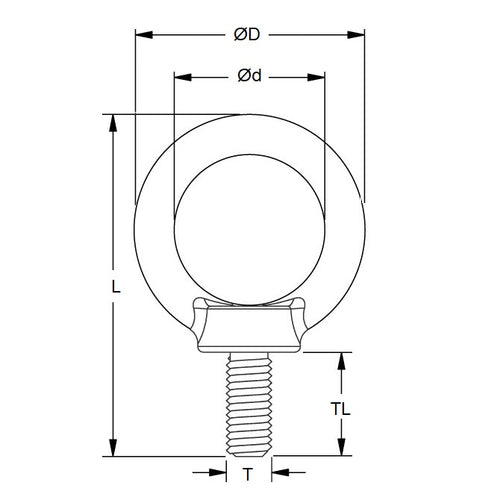

    FP-10RSDiagramFP-10RSImage
