Miniature Bearings Australia
SUS59RS - Datasheet
MBA
Category Information

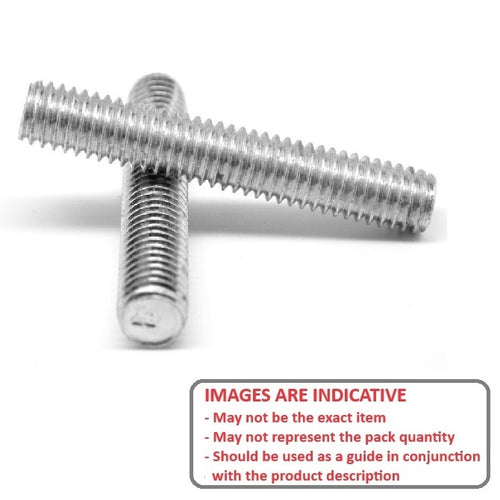

Threaded Rod - Clamping StudsClamping Studs Threaded Rod. Steel and 303 stainless steel.
- Threaded metal rods or posts that serve as a crucial component in workholding systems to securely fasten workpieces, fixtures, and machinery like vices to a table or machine bed.
- Used in conjunction with T-nuts, flange nuts, or specialized zero-point clamping systems, provide high-precision, repeatable, and fast setups by creating a secure point of contact and allowing for quick adjustments.
- Metric and imperial sizes.
- Yield strength 100,000 PSI. Tensile strength 125,000 PSI
Product Data
- Thread : 1-8 UNC (25.4mm)
- Length (L)
152.40
mm
(Equiv. 6 in.) - Thread Length (A) 63.50
- Thread Length (B) 63.50 mm
- Hardness ASTM A 311 Class B
- Material Stress Proof Steel to ASTMA311 Class B
Product Compliance and Data
Additional Resources
Cross References
- SUS59
- SUS-59
