Miniature Bearings Australia
SC032W-006-R-SL-CZ - Datasheet
MBA
Category Information

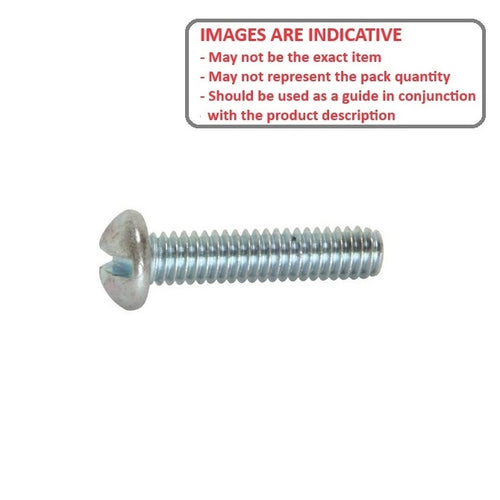

Screws - Round Head - Steel - SlottedSlotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 1/8-40 BSW (3.175mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material Zinc Plated Steel
- Max Head Diameter 5.99 mm
- Max Head Height 2.41 mm
- Type Round / Slotted
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSRSZP1814
