SC032W-051-R-SL-BR - Datasheet
MBA
Category Information

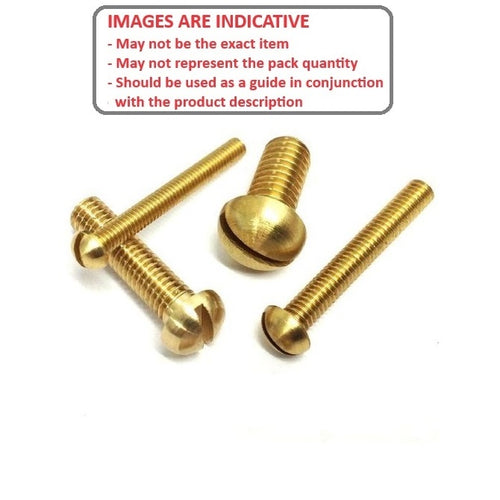

Screws - Round Head - Slotted - BrassBrass Slotted Round Head Screws. Brass metal thread machine screws BSW - UNF - UNC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 1/8-40 BSW (3.175mm)
- Thread Length (L)
50.8
mm
(Equiv. 2 in.) - Material Brass
- Max Head Diameter 5.99 mm
- Max Head Height 2.41 mm
- Type Round / Slotted
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech BRRSP182
