NT032W-HX-BR - Datasheet
MBA
Category Information

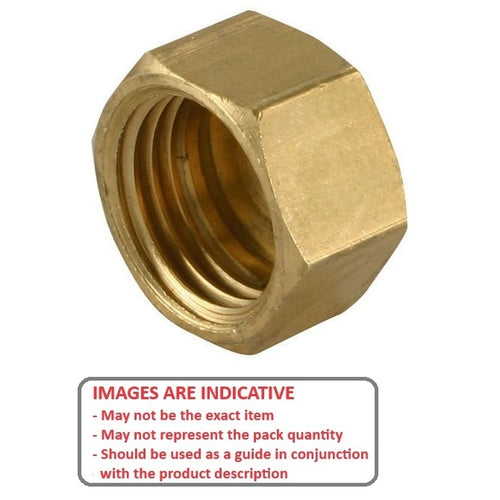

Nuts - Hexagonal - Full - BrassBrass Full Hexagonal Nuts. UNC - UNF - BA - METRIC.
- An expanded range may be available on special order. Please enquire.

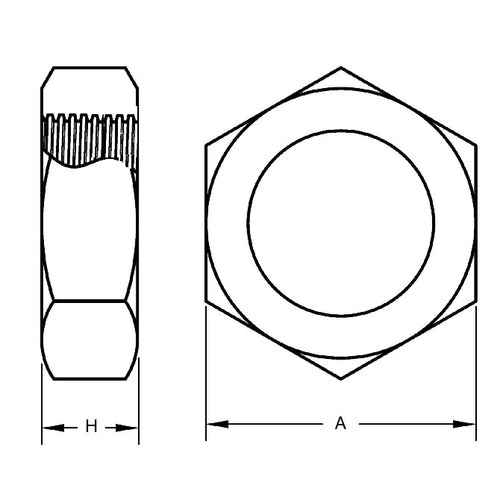

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
- Nuts marked as type SCALE have the same dimension across flats as the brass hex head screw of the same thread size.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 1/8-40 BSW (3.175mm)
- Thickness (H)
2.7
mm
(Equiv. 0.106 in.) - Across Flats (A/F)
5.80
mm
(Equiv. 0.228 in.) - Type Standard
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Hitech BRHNB18
- Hitech BRHNP18
