SC032W-019-P-PH-CZ - Datasheet
MBA
Category Information

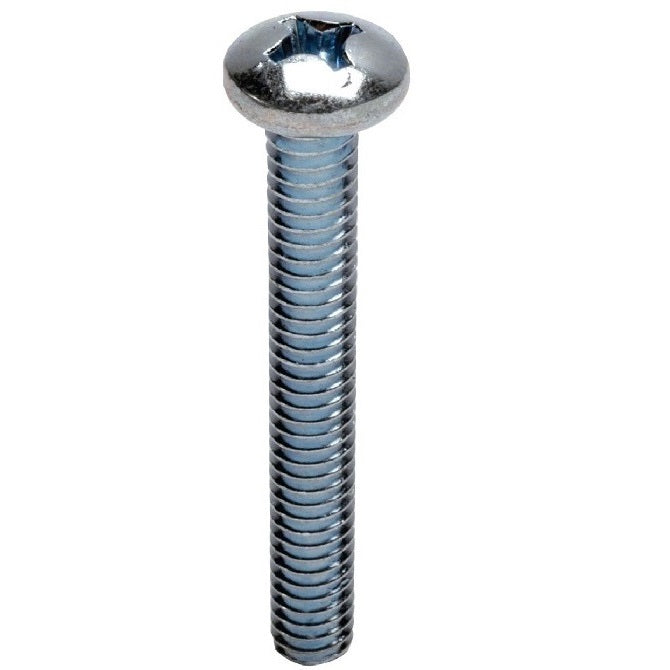

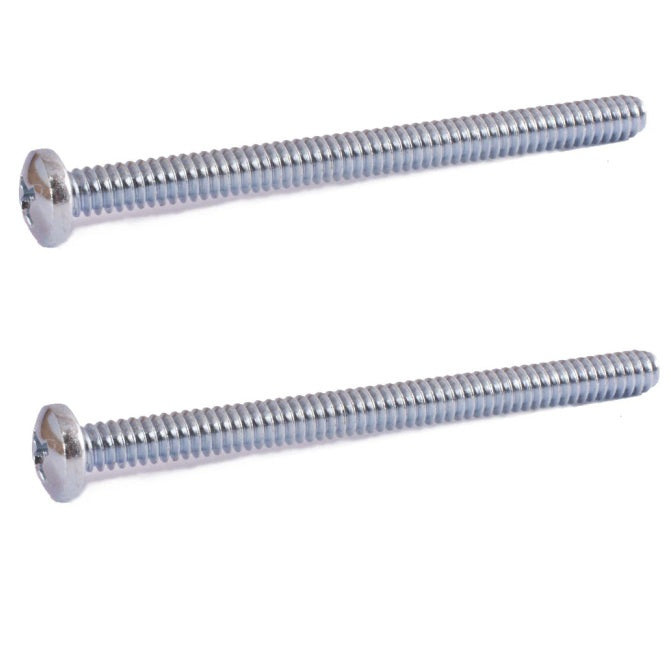

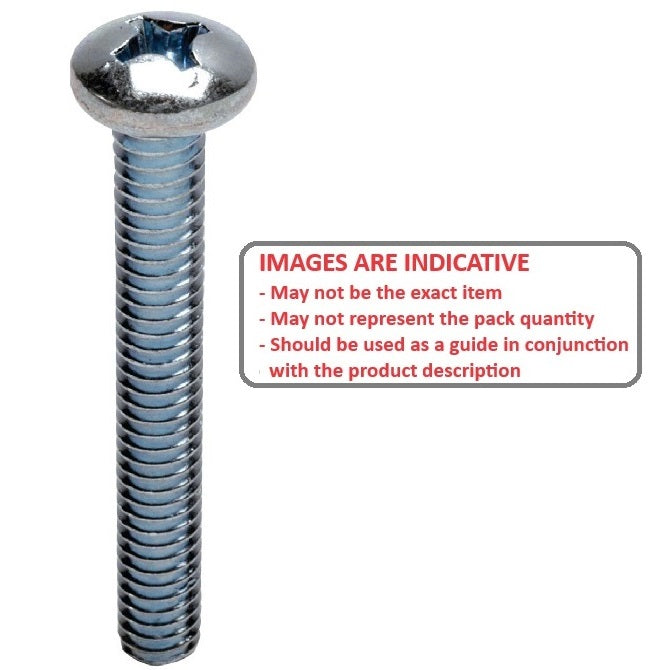

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

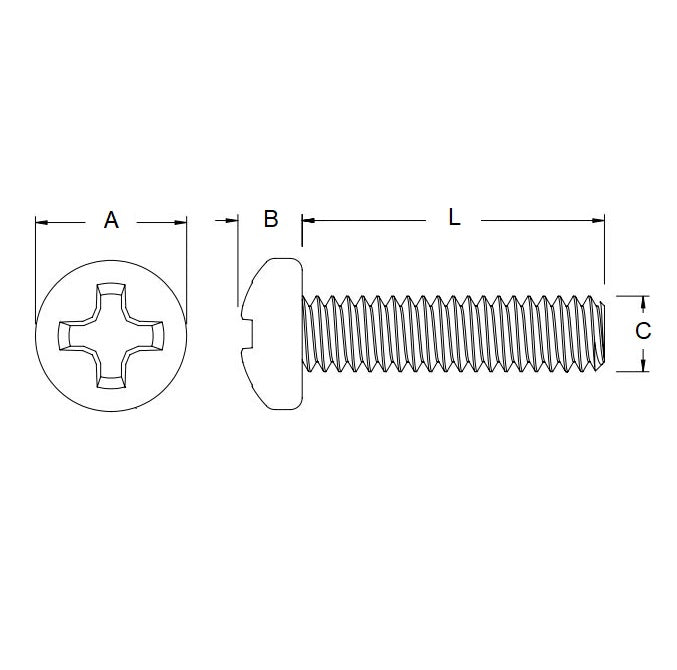

- Thread Size (C) : 1/8-40 BSW (3.175mm)
- Thread Length (L)
19.1
mm
(Equiv. 0.752 in.) - Material Zinc Plated Steel
- Max Head Diameter 6.2 mm
- Max Head Height 1.9 mm
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSPPZP1834
