SK019F-006-SK-S4 - Datasheet
MBA
Category Information

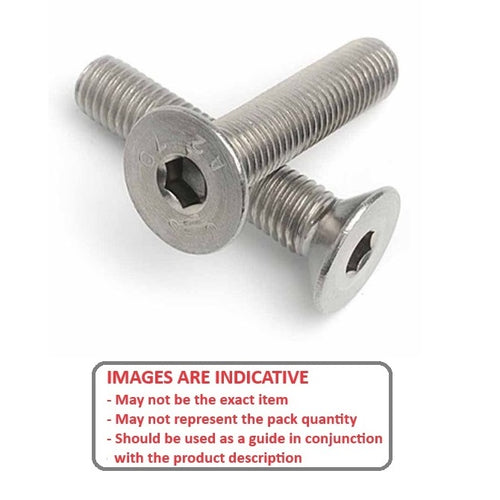

Screws - Countersunk - Socket - 304 Stainless304 Stainless Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : 1-72 UNF (1.85mm)
- Overall Length (L)
6.4
mm
+ 0.0 / - 0.76
(Equiv. 0.252 in.) - Material 304 Stainless
- Head Diameter (A) 4.3 mm
- Max Head Height 1.4 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 1.27 (0.05in.) mm
- Countersunk Angle 82 °
- Pitch 0.353 mm
- Threads Per Inch 72 TPI
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92210A018
- MicroFast® SFS0104
