NT019F-HX-BR - Datasheet
MBA
Category Information

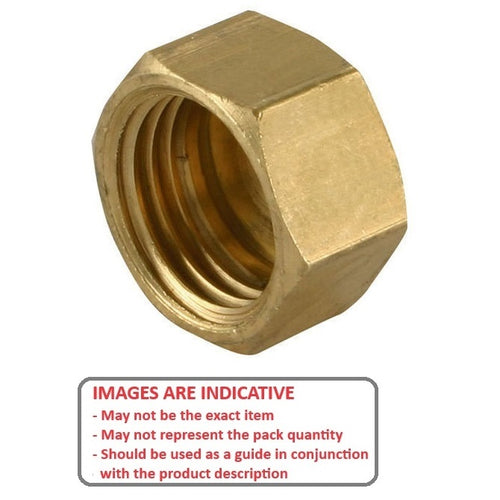

Nuts - Hexagonal - Full - BrassBrass Full Hexagonal Nuts. UNC - UNF - BA - METRIC.
- An expanded range may be available on special order. Please enquire.

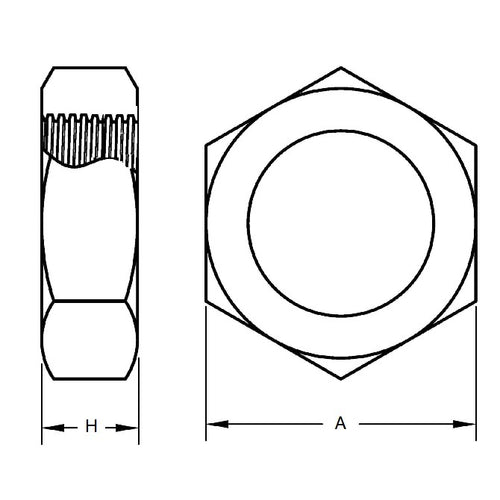

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
- Nuts marked as type SCALE have the same dimension across flats as the brass hex head screw of the same thread size.
Product Data
- Thread Size : 1-72 UNF (1.85mm)
- Thickness (H)
1.27
mm
(Equiv. 0.05 in.) - Across Flats (A/F)
3.96
mm
(Equiv. 0.156 in.) - Type Standard
- Pitch 0.353 mm
- Threads Per Inch 72 TPI
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 92671A125
- MicroFast HNB0172
