STR-160-0064-0500-CST - Datasheet
MBA
Category Information
Strip - Spring SteelSpring Steel Strip. Hundreds of uses.
- An expanded range may be available on special order. Please enquire.
- Hardened and tempered spring steel strip
- Note that the width of this strip may vary up to a few mm as it is guillotine cut from sheet
- If you require a closer tolerance on the strip width please contact us prior to ordering
Product Data

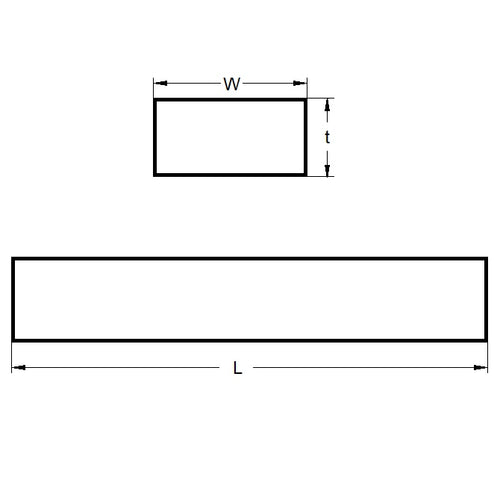

- Thickness (t)
:
1.60
mm
+/- 0.051
(Equiv. 0.063 in.) - Width (w)
6.4
mm
+/- 1.0
(Equiv. 0.252 in.) - Length (L)
500
mm
Minimum
(Equiv. 19.685 in.) - Description Strip
- Grade SAE1074
- Typical Hardness 44-55 RC
- Material Carbon Spring Steel
