Miniature Bearings Australia
PUI016-0318-048-A - Datasheet
MBA
Category Information

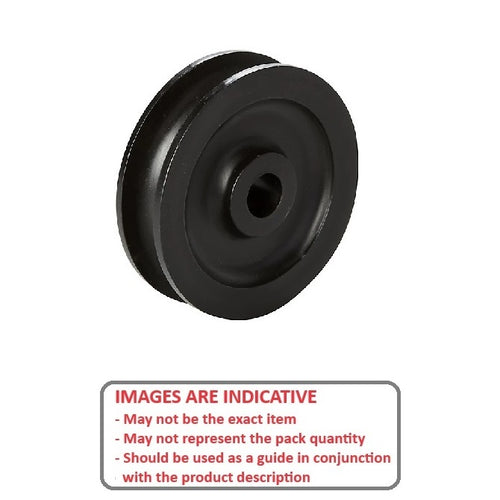

Pulleys - U Groove Idler - Single Row - Plastic With Plain BorePlastic With Plain Bore Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks
Product Data

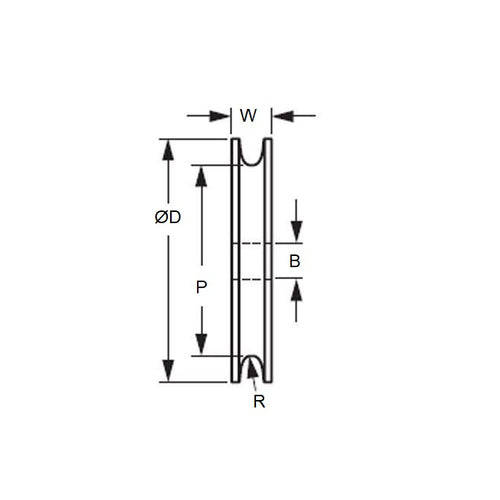

- Maximum Cable Diameter (H)
:
1.60
mm
+/- 0.127
(Equiv. 0.063 in.) - Outside Diameter (OD) 31.75 mm
- Bore (B) 4.826 mm
- Overall Width (OAL) 5.563
- Dia. to Base of Groove (P) 27.00 mm
- Type Plain Bearing - Light Duty
- Groove Radius (R) 0.89
- Material Acetal - Black
Product Compliance and Data
Additional Resources
Cross References
- 3434T35
- Reid Tool® CBL-850
- A6M9-02006
- A6M902006
- CBL850
