W0016-LK-003-004-S-CB - Datasheet
MBA
Category Information

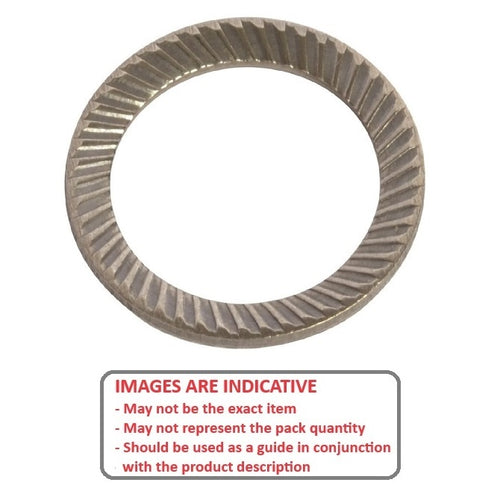

Washers - Serrated - SafetySafety Serrated Washers. Black hardened spring steel selection.
- Serrated washers have teeth or serrations on one or both of its surfaces, allowing them to bite into the mating surfaces of the fastener and materail being fastened.
- This creates a strong grip that helps to prevent loosening due to vibration or rotation. All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

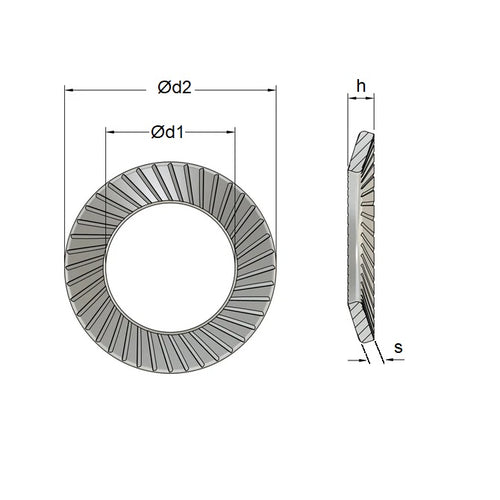

- Nominal Inside Diameter
:
1.6
mm
(Equiv. 0.063 in.) - OD (d2)
3.2
mm
(Equiv. 0.126 in.) - Thickness (S)
0.35
mm
(Equiv. 0.014 in.) - Overall Width (h) 0.60 mm
- To Suit Thread Size M1.6
- Actual ID (Ref) 1.7 mm
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- WMS1.6
