RP015-0120-Z - Datasheet
Brighton Best
Category Information

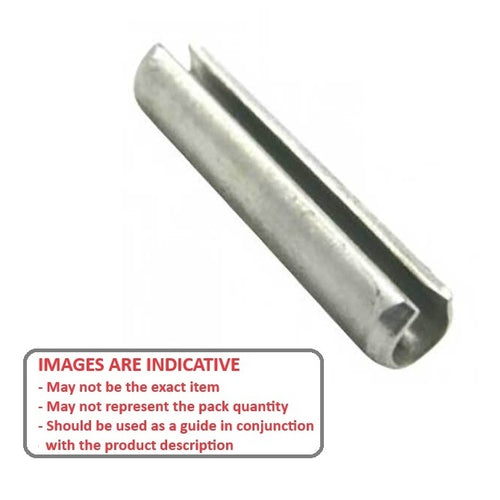

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 1.50 mm
- Length (L) 12.00 mm
- Free Diameter 1.65 mm
- Thickness (S) 0.35 mm
- Chamfer Length (cL) 0.15-0.70 mm
- Chamfer Diameter (cD) 1.4 mm
- Standard B18.8.4M
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® V81818
