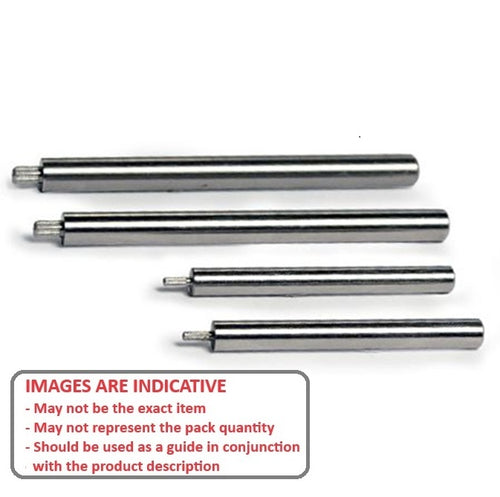

SHPIN01.5X50 - Datasheet
MBA
Category Information
Pinion ShaftsPinion Shafts. This is the main category in this series
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

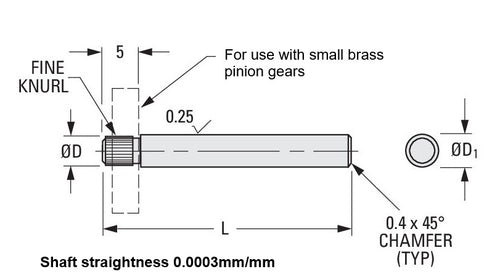

- Pinion Bore
:
1.500
mm
(Equiv. 0.059 in.) - Knurled Diameter (D)
1.550
mm
(Equiv. 0.061 in.) - Knurled Length (l)
5.000
mm
(Equiv. 0.197 in.) - Surface Finish 0.250 Micrometers
- Shaft Diameter (D1) 5.000 mm
- Overall Shaft Length (L) 50.000 mm
- Straightness 0.0003 mm / mm
- End Chamfered
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A 7X 1MP0550A
