CBLU-159-316-77 - Datasheet

MBA

Category Information

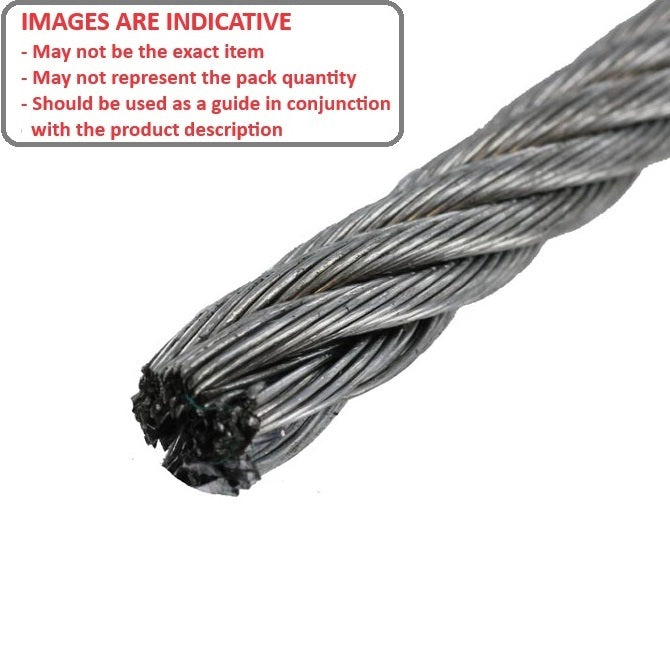

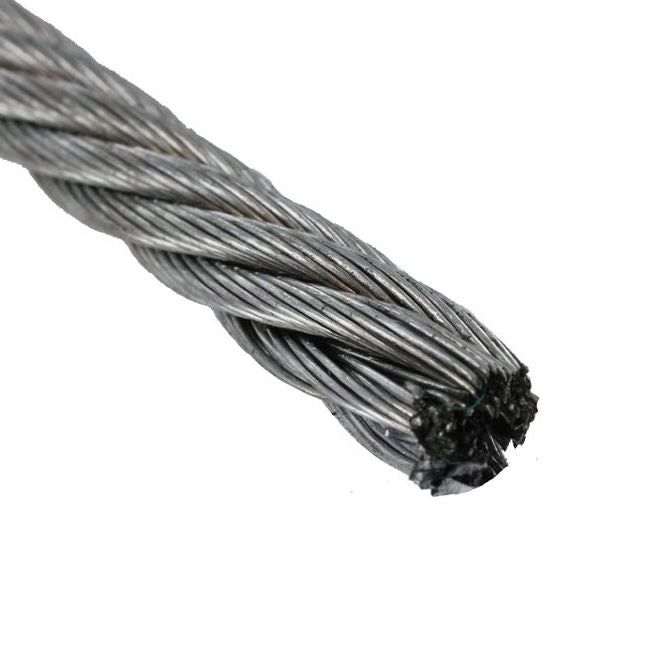

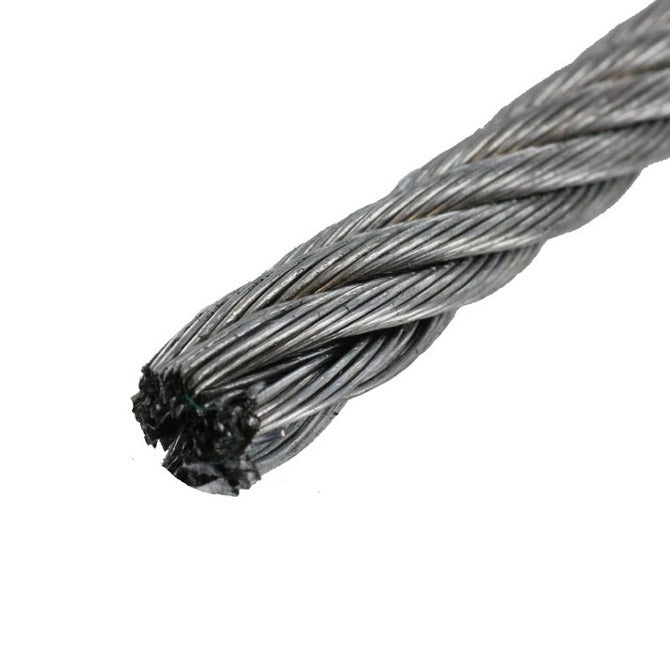

Cable and Accessories - Cable - Miniature - Uncoated

Uncoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)

  • An expanded range may be available on special order. Please enquire.
  • Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
  • Also called bowden cable.

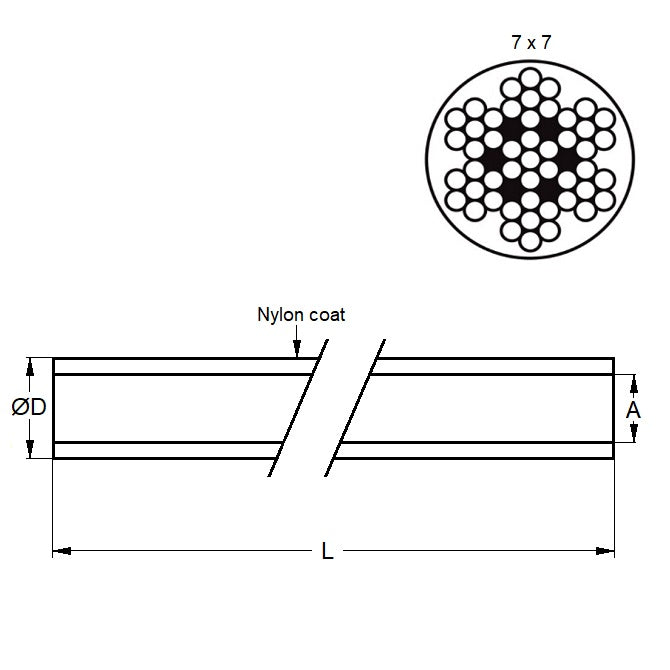

Product Data

  • Overall Diameter : 1.59 mm
    (Equiv. 0.063 in.)
  • Cable Diameter (A) 1.588 mm
    (Equiv. 0.063 in.)
  • Breaking Strength 163.3 kg
  • Length 30 Mtr Roll
  • Strand Type 7x7
  • Material Stainless Steel 316 (Similar to A4, 18-10)
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 8908T32
    • CBL1040
    • CBL-1040
