Miniature Bearings Australia
0T-0016-0009-0300-COP - Datasheet
MBA
Category Information

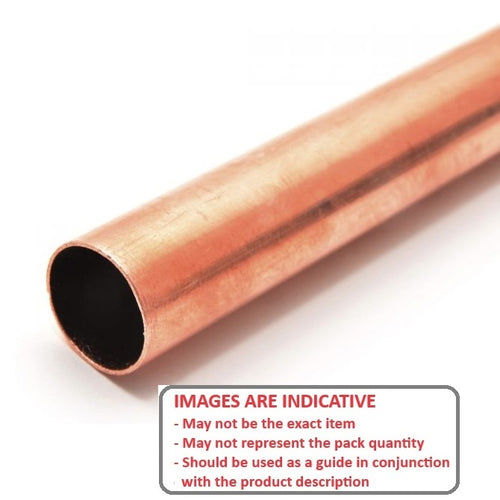

Tube - Round - CopperCopper Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
- Many sizes fit neatly into larger sizes to allow for telescoping size applications. Some items may be available in longer or shorter lengths. E-mail sales@smallparts.com.au with enquiries.
Product Data
- OD (D)
:
1.59
mm
+/- 0.051
(Equiv. 0.063 in.) - ID (d)
0.88
mm
+/- 0.076
(Equiv. 0.035 in.) - Length (L)
304.8
mm
+/- 1.0
(Equiv. 12 in.) - Other Information Alloy 122 (mill finish) seamless
- Quantity Per Card 3
- Material Copper
Product Compliance and Data
Additional Resources
Cross References
- KSE KS8117
- KSE KSE-01176COPPER1-16TUBE
- KSE01176COPPER116TUBE
