ATP-16-10-24 - Datasheet
MBA
Category Information

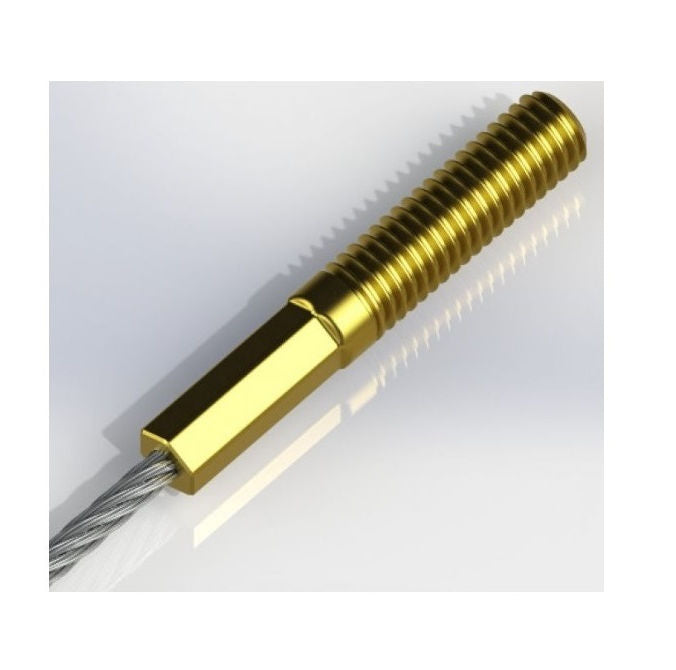

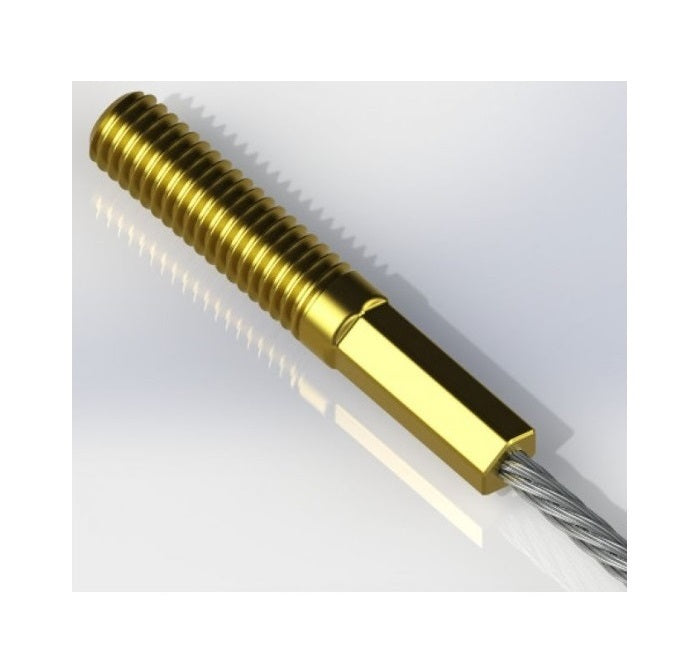

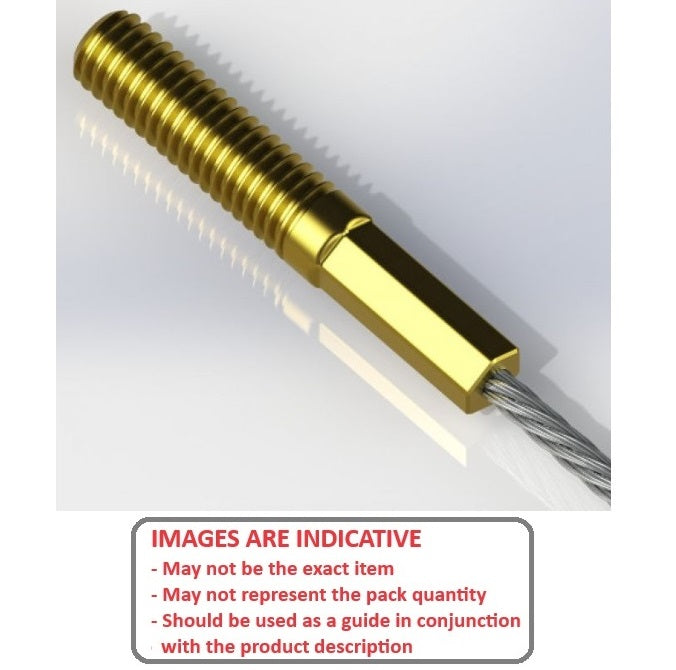

Cable Attachments - Threaded PlugsThreaded Plugs Cable Attachments. Use with synchromesh or standard miniature cable
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.

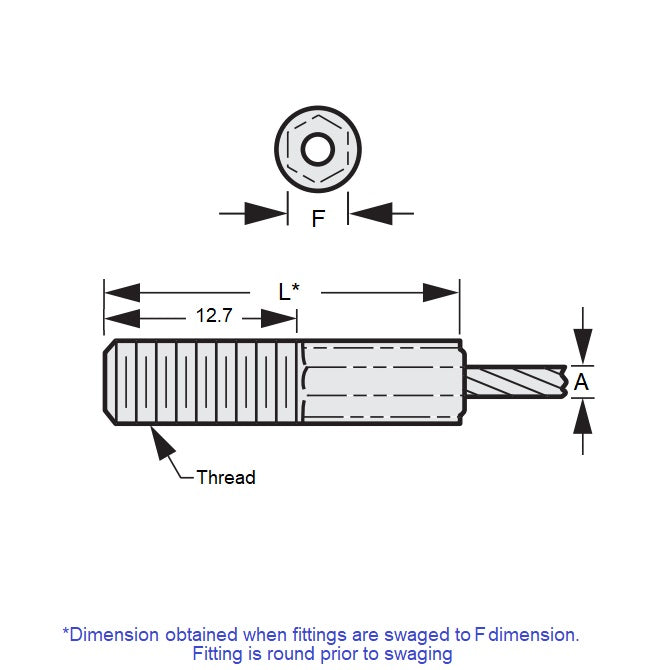

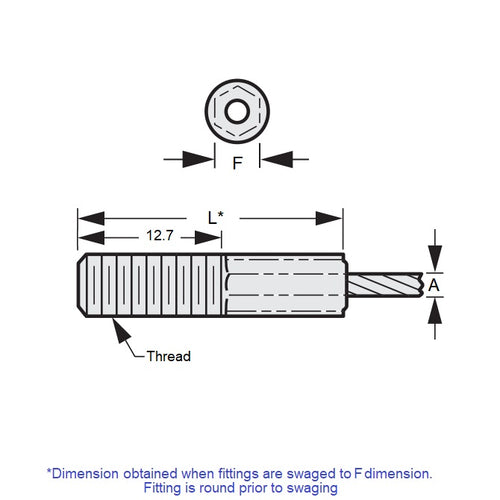

- F and L dimensions are obtained after swaging. Before swaging the fitting is round.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable cable diameter
:
1.59
mm
(Equiv. 0.063 in.) - Flats Width (F)
3.97
mm
(Equiv. 0.156 in.) - Length (L)
28.58
mm
(Equiv. 1.125 in.) - Diameter before swaging 4.76 mm
- Thread Size 10-24 UNC (4.762mm)
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- A6B9-06310
- A6B906310
- A 6B 9-06310
