Miniature Bearings Australia
ECL-0013-0016C-S15 - Datasheet
MBA
Category Information

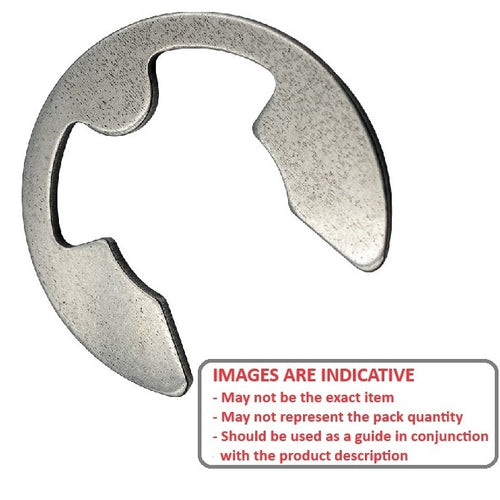

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
1.59
mm
+ 0.76 / - 0.00
(Equiv. 0.063 in.) - Groove Dia. (Dg)
1.32
mm
+ 0.051 / - 0.000
(Equiv. 0.052 in.) - Clip Thickness (T)
0.51
mm
(Equiv. 0.02 in.) - Clip OD Loose (D1) 4.76 mm
- Groove Width (W) 0.58 mm
- Maximum Rec. Shaft Dia (S) 2.35
- Clip OD in groove (C1) 5.08 mm
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- NoCor YE-006-SS
- YE006SS
- N1500-Y006KSF
- N1500Y006KSF
- S73LW2ER13306A
- S73LW2-ER133-06A
