DP016-025-CH-1 - Datasheet

NoCor

Category Information

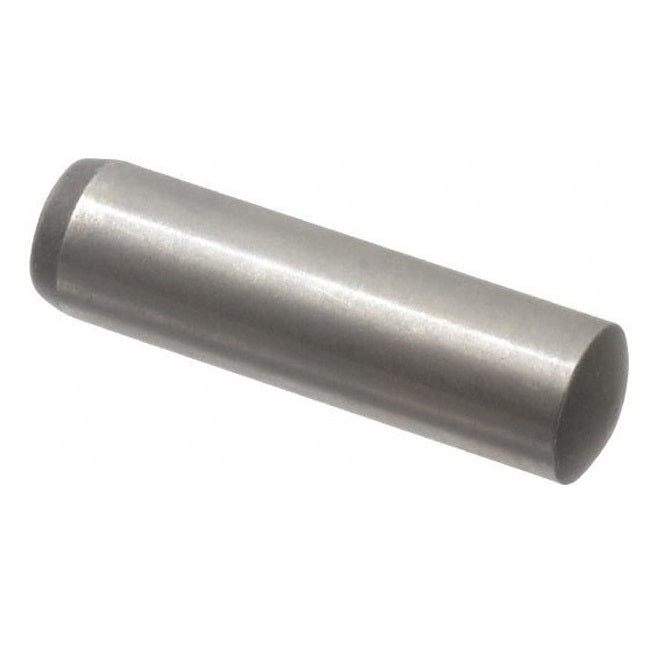

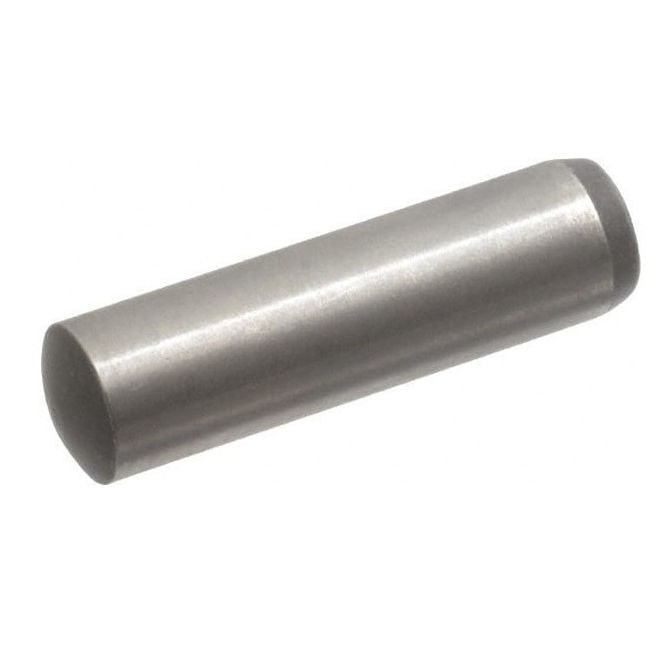

Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Carbon Steel Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - Based on DIN6325, ISO2338

  • Also known as parallel pins
  • Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
  • An expanded range may be available on special order. Please enquire.
  • Note! Type 2 pins may be supplied in lieu of type 1 pins.

Product Data

  • Diameter (D) : 1.588 mm + 0.002 / + 0.008
    (Equiv. 0.063 in.)
  • Length (L) 25.40 mm +/- 0.420
    (Equiv. 1 in.)
  • Approx. Overall Length 25.40 mm +/- 0.420
    (Equiv. 1 in.)
  • Type 1 (Chamfer One End)
  • Standard Based on DIN 6325
  • Material Steel Alloy - Heat Treated and Ground Rc 58-62
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best 241028
  • NoCor DOW-063-1000
  • DOW0631000
  • A9Q320232
  • A9Q32-0232
