BL-00159-S4-G100 - Datasheet
MBA
Category Information

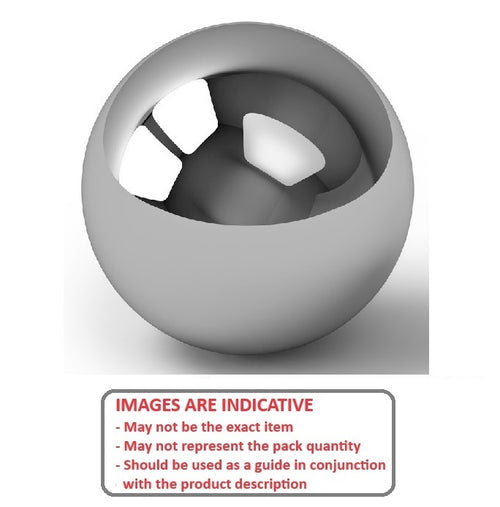

Balls - Metallic - Stainless Steel - 304 Grade304 Grade Stainless Steel Metallic Balls. A2 Grade. Low magnetic permeability. Good corrosion resistance. Excellent for use in handling foodstuffs.
- Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
- General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
- For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
- Non annealed. Hardness: Rockwell C: 25-39. Specific Gravity: 7.916.
- Low magnetic permeability. Good corrosion resistance. Excellent for use in handling foodstuffs.
- Note! Increase in magnetic permeability may occur due to the grinding process and can be relieved by heating to over 1000 oC.
Product Data

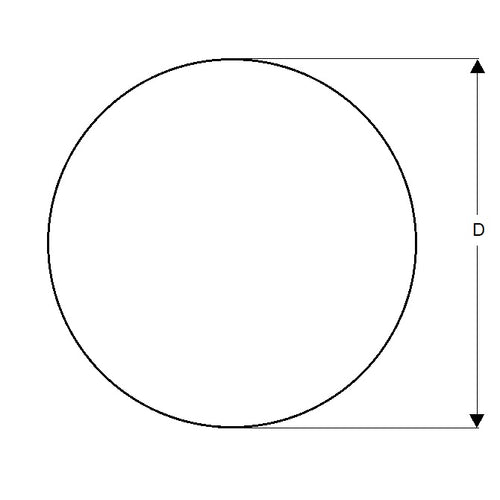

- Diameter (D)
:
1.588
mm
+/- 0.01270
(Equiv. 0.063 in.) - Material 304 Stainless
- Precision ISO 3290 Grade 100
- Hardness 25-39 Rockwell C
- Properties Low magnetic permeability. Good corrosion resistance
- Colour Silver
- Specific Gravity 7.916
- Ovality +/-0.00250
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 9291K41
- Small Parts BX-1
- BX1
