VD-1RS - Datasheet

MBA

Category Information

Plungers - Ball Buttons

Ball Buttons Plungers. Also known as striker bushings or ball plunger detents. Use with ball or bolt spring plungers for a hard wearing contact area.

  • Burnished ground hardened steel.

Product Data

  • Suitable Ball Diameter (d) : 1.575 mm
    (Equiv. 0.062 in.)
  • Diameter (D) 2.731 mm
    (Equiv. 0.108 in.)
  • Length (L) 3.175 mm
    (Equiv. 0.125 in.)
  • Hole Diameter (d1) 1.422
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33545A21
    View full details

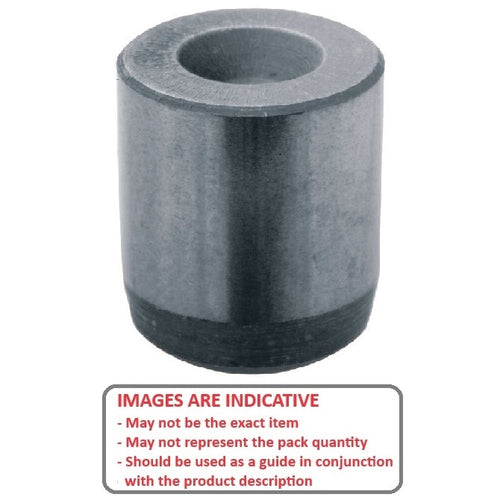

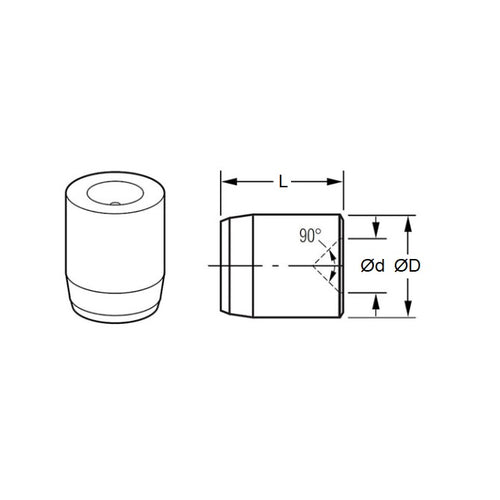

    VD-1RSDiagramVD-1RSImage
