12GM-1-180 - Datasheet
MBA
Category Information
Gearmotors - DC - 12.1mm Diameter12.1mm Diameter DC Gearmotors. Small light weight geared motors used in toys and small solar applications
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.

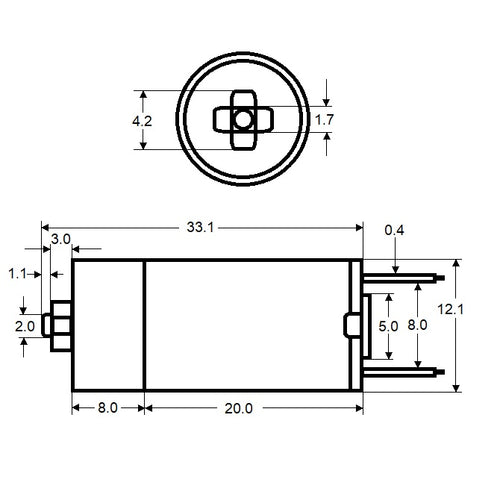

- NOTE! These do not have a standard output shaft. The output is a plastic crossed block (see diagram) which is designed to be fitted to a fabricated coupling in O.E.M applications.
- However, the plastic block would be suitable for drilling and attaching objects with wire for rotating mobile type applications.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Rated Voltage : DC 1.5 V
- Approx Output Speed 16.60 RPM
- Reduction Ratio 180:1
- Length 28.0 mm
- Max Efficiency Motor Speed 3000 RPM
- Max Efiiciency Motor Current 0.16 A
- Max Efficiency Motor Torque 5.00 g.cm
- Max Efficiency Output Watts 0.03 W
- No Load Motor Speed 3500 RPM
- No Load Motor Current 0.09 A
