SM-EYE - Datasheet

MBA

Category Information

Cable Attachments - Eye

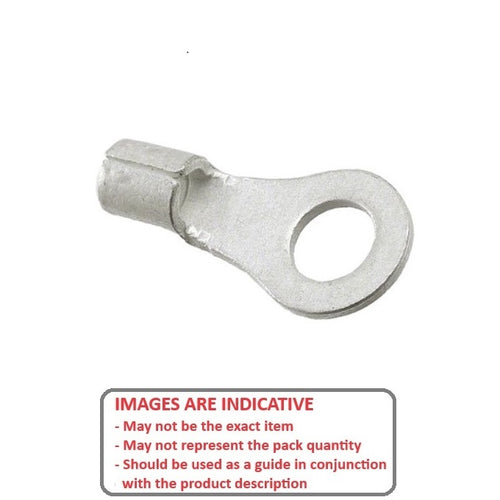

Eye Cable Attachments. Use with synchromesh or standard miniature cable

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.

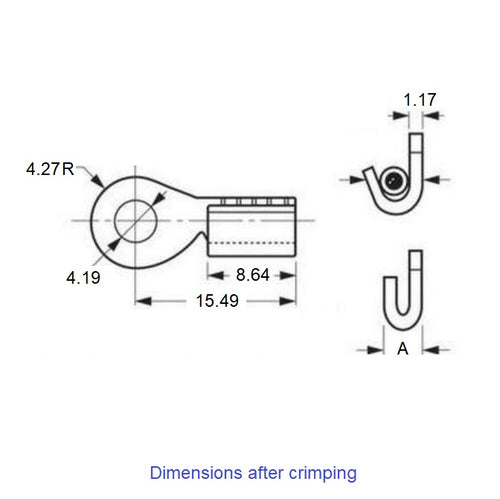

  • Recommended dimensions after crimping:.
  • 1.05 Cable - A=2.59.
  • 2.06 Cable - A=2.64.
  • 2.60 Cable - A=2.72.
  • 3.40 Cable - A=2.80 (3.40 Cable must have outer helical wire removed prior to crimping).

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Suitable cable diameter : All mm
  • Material Carbon Steel - Low Carbon Zinc Dichromate Finish
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • A 6J 9MAA39
    • A6J9MAA39
    • A6J9-AA39
    • A6J9AA39
