SI-064-159 - Datasheet
MBA
Category Information

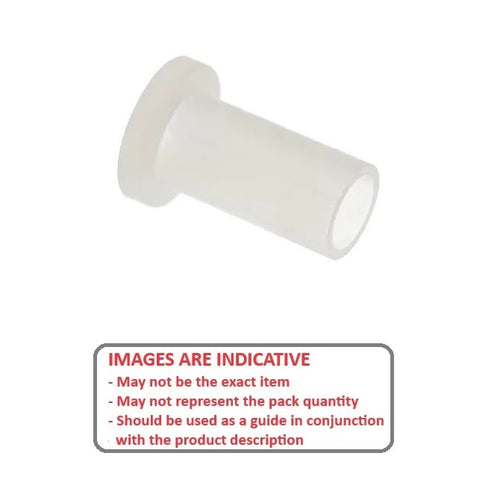

Insulators - ScrewScrew Insulators. Non-conductive, non-corrosive, light weight, self-sealing and self-locking.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

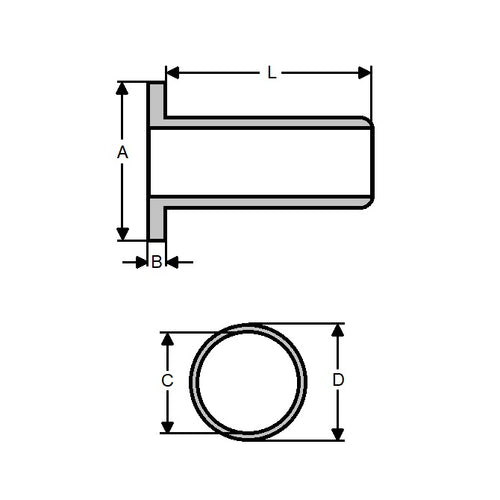

- Thread Size : 1/4 in. (6.35mm)
- Shank Length (L)
15.875
mm
(Equiv. 0.625 in.) - Bore Size (C)
6.604
mm
(Equiv. 0.26 in.) - Shank Diameter (D) 7.925 mm
- Flange Diameter (A) 13.030 mm
- Flange Thickness (B) 1.588 mm
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- 91145A168
- A 9M70-1662
- A9M70-1662
- A9M701662
