KM064-032-TEE-Y - Datasheet
MBA
Category Information

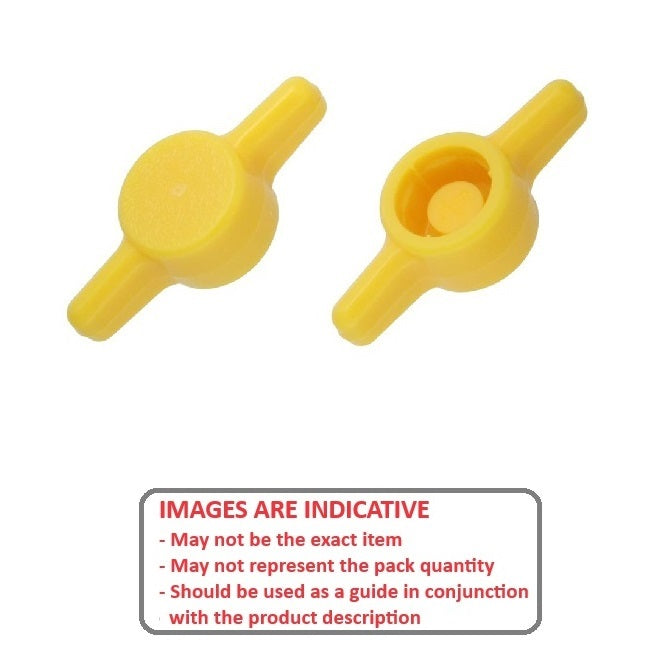

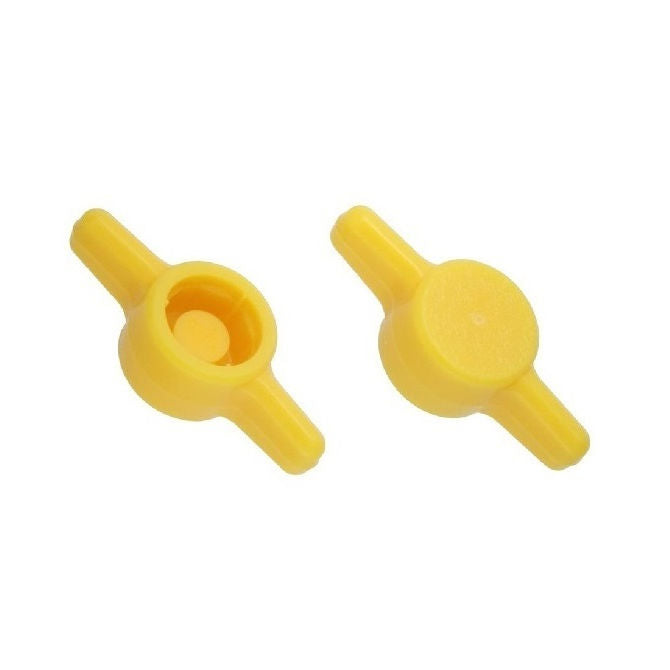

Knobs - Thumb - For Cap ScrewsFor Cap Screws Thumb Knobs. Four Types and four colours to fit onto Socket Head Cap Screws.
- An expanded range may be available on special order. Please enquire.
- To fit Socket Head Cap Screws (Order Separately)
- Choice of 4 Colours.
- Choice of 4 styles.
- Made From Acetal Resin.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Cap Screw Thread : 1/4 (6.35mm) - Use Own Screw

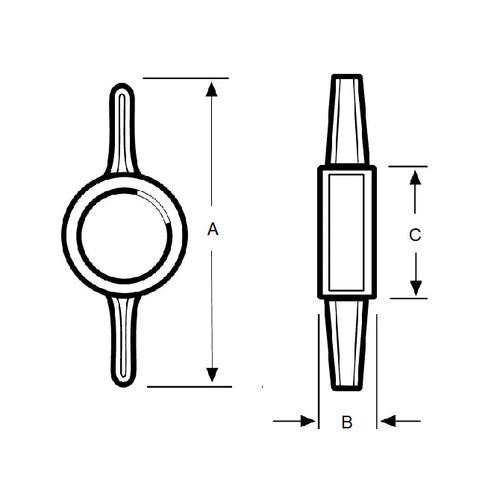

- Head Diameter (A)
31.75
mm
(Equiv. 1.25 in.) - Thickness (B)
7.9
mm
(Equiv. 0.311 in.) - Colour Yellow
- Style Tee
- Hub Diameter (C) 13.097 mm
- Material Plastic
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94052A053-YELLOW
- A 9M41-Y8398924
- 94052A053YELLOW
- A9M41-Y8398924
- A9M41Y8398924
