EZL-064F-095C-095-C - Datasheet

MBA

Category Information

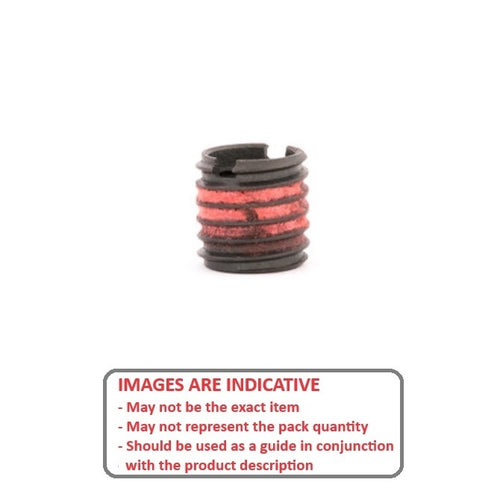

Thread Repair - Inserts - EZ-Lok - Solid Carbon Steel

Solid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.

  • Automatic self locking pressure activated adhesive on external thread.
  • Prevent or repair stripped threads
  • No special tools required
  • Install with a bolt and wrench
  • Metric, UNC and UNF

Product Data

  • Internal Thread : 1/4-28 UNF (6.35mm)
  • Length 9.53 mm
    (Equiv. 0.375 in.)
  • External Tap Size 9.525mm (3/8-16 UNC)
  • Tapping Hole Size 8.43 mm
  • Drive Tool 500-3
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • EZ-LOK 319-428
  • 90259A136
  • 319428
