SS064F-0095-S3-NT - Datasheet
MBA
Category Information

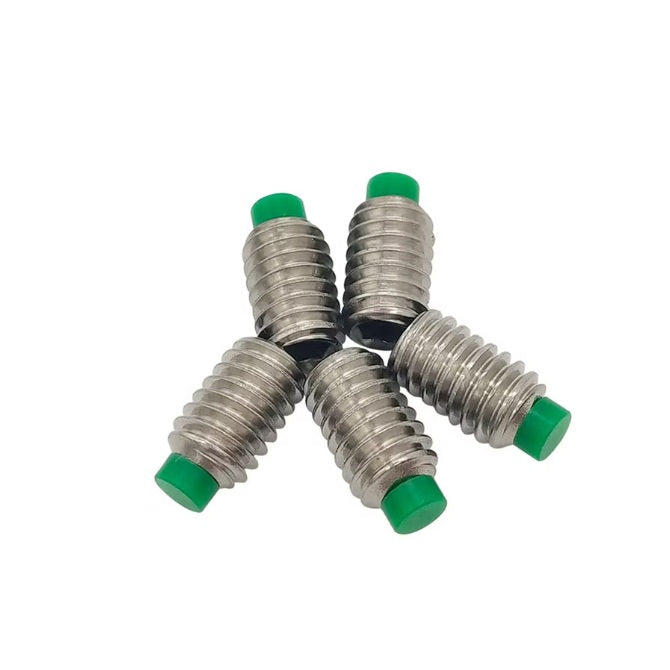

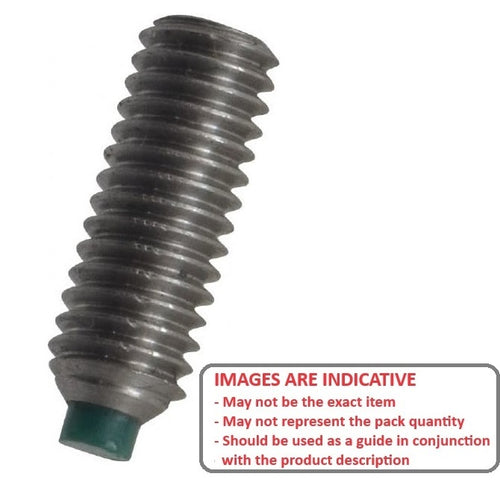

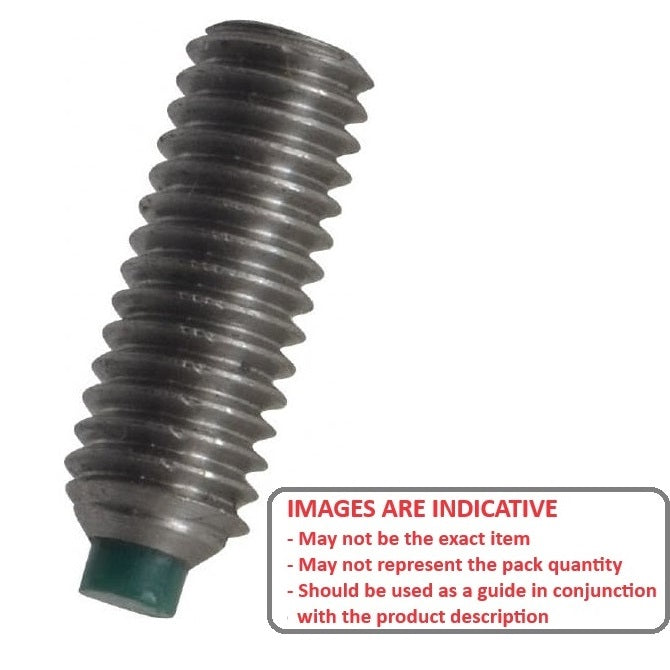

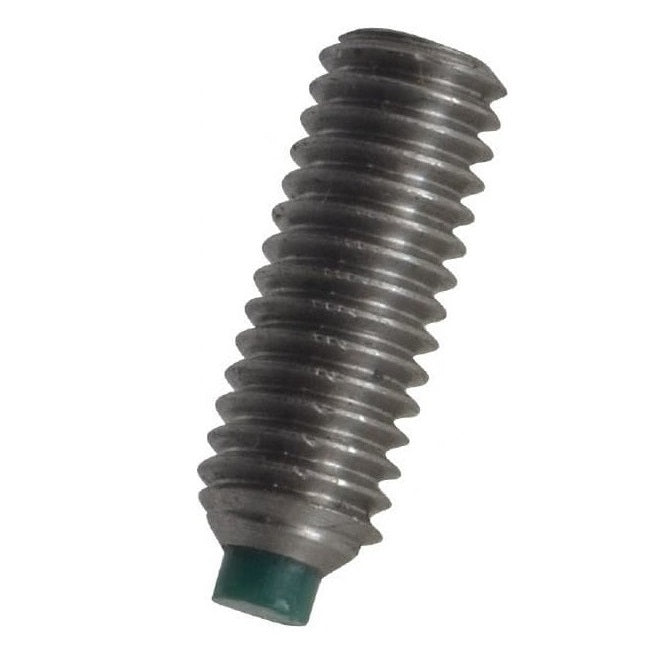

Socket Set Screws - Nylon Tipped - 304 Stainless Steel304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
Product Data
- Thread Size : 1/4-28 UNF (6.35mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Type Nylon Tipped
- Overall Length (L + L1) 11.1 mm
- Tip Diameter (d) 3.2 mm
- Tip Length (L1) 1.6
- Pitch 0.907 mm
- Threads Per Inch 28 TPI
- Drive Type Socket
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90291A305
- BTS-1045
- BTS1045
