SS064F-0064-AS-CP - Datasheet

MBA

Product Data

• Thread Size : 1/4-28 UNF (6.35mm)

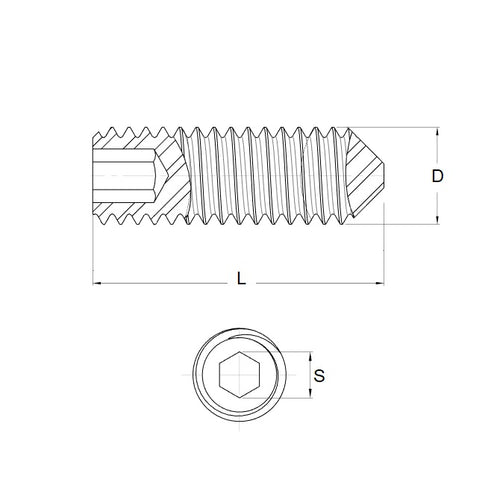

• Thread Length (L) 6.4 mm
  (Equiv. 0.252 in.)

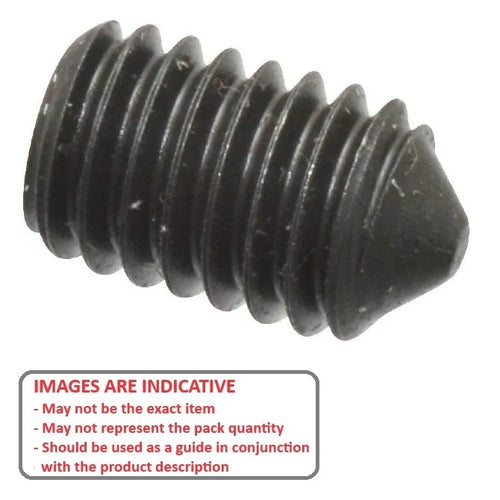

• Type Cone Point
• Hex Key Size 3.18 (1/8)
• Pitch 0.907 mm
• Threads Per Inch 28 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92695A311
• BRB-121125P
• BRB121125P
