Miniature Bearings Australia
NT064C-NI-CS - Datasheet
MBA
Category Information

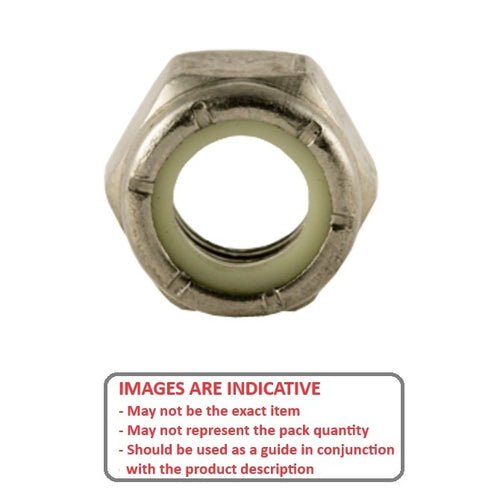

Nuts - Hexagonal - Nylon Insert - SteelSteel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thickness (H)
7.9
mm
(Equiv. 0.311 in.) - Across Flats (A/F)
11.0
mm
(Equiv. 0.433 in.) - 7.9
- Type Standard
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Steel - Plated
Product Compliance and Data
Additional Resources
Cross References
- 90631A129
- ROC-NIN-4
- ROCNIN4
