NT064C-RW-CS - Datasheet

MBA

Category Information

Nuts - Weld Steel

Weld Steel Nuts. Used in metalwork or for leveling appliances. Round or slab base. Material thickness is the thickness of the flange.

    Product Data

    • Thread Size : 1/4-20 UNC (6.35mm)
    • Type Round Base
    • Base Length (A) 19.05 mm
      (Equiv. 0.75 in.)
    • Height (B) 7.9 mm
    • Tube Diameter (C) 7.75 mm
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 90596A025
    • WN205
    • WN-205
    View full details

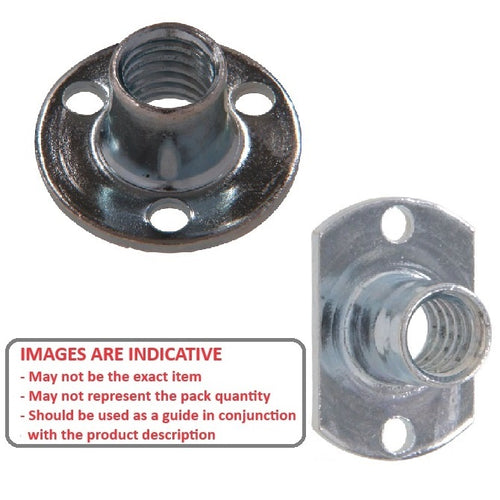

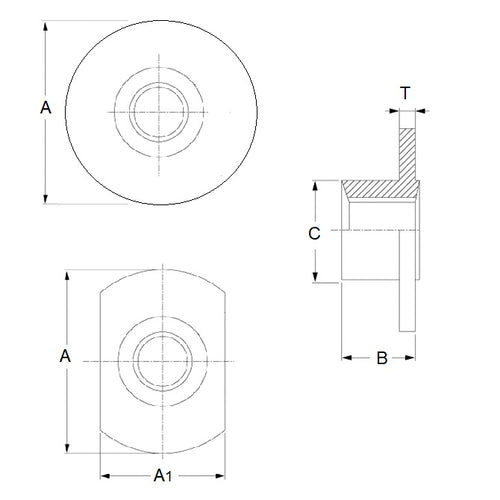

    NT064C-RW-CSDiagramNT064C-RW-CSImage
