SS064C-0095-AS - Datasheet
Brighton Best
Category Information

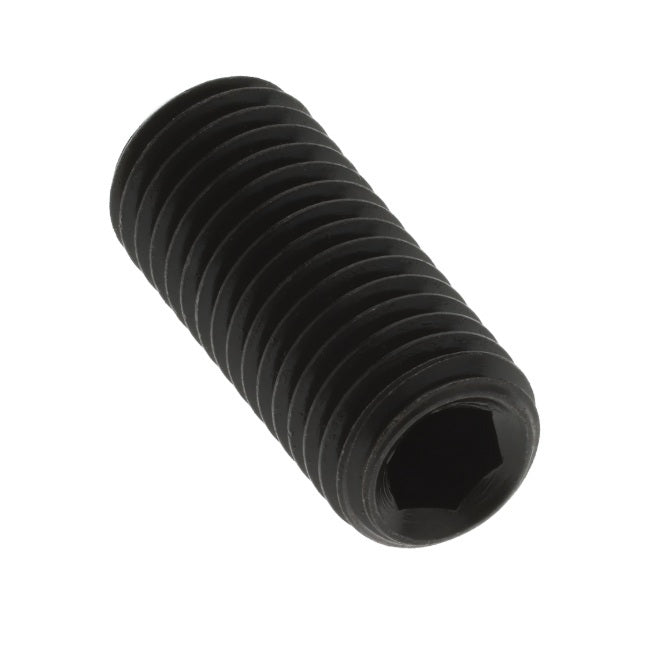

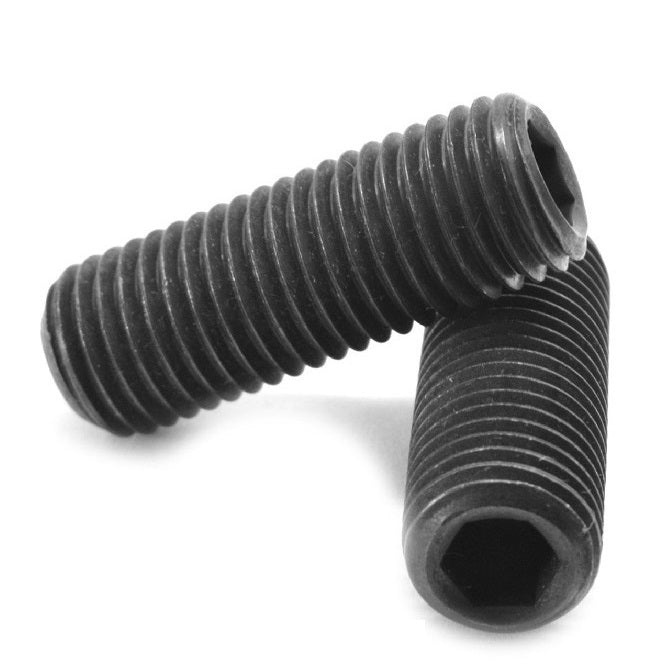

Socket Set Screws - Standard Cup Point - Alloy Steel DIN916Alloy Steel DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.
- Socket driven grub screw with a standard cup point.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Type Standard Cup Point
- Hex Key Size 3.18 (1/8)
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Finish Hardened, Black Oxide Coated
- Material Carbon Steel - Hardened GD14.9
