SC064C-010-LH-SK-C - Datasheet
Brighton Best
Category Information

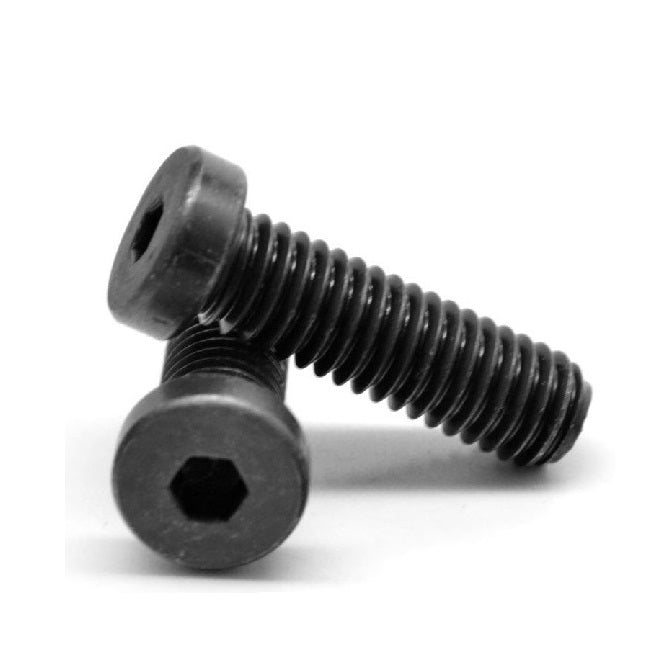

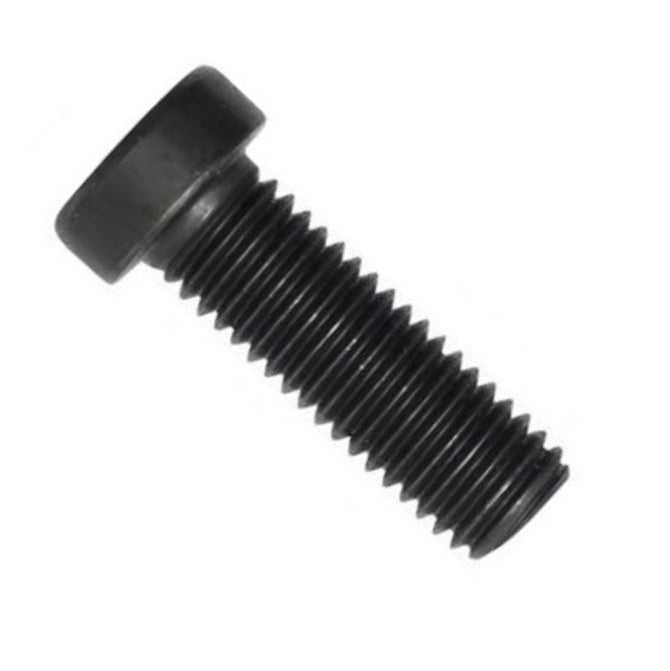

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material High Tensile Steel / Black Oxide
- Head Height 3.07 - 3.23 mm
- Head Diameter 9.27 - 9.53 mm
- Usual Hex Key (D) 3.18 (1/8) (May Vary) mm
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material High Tensile Steel Black Oxide
