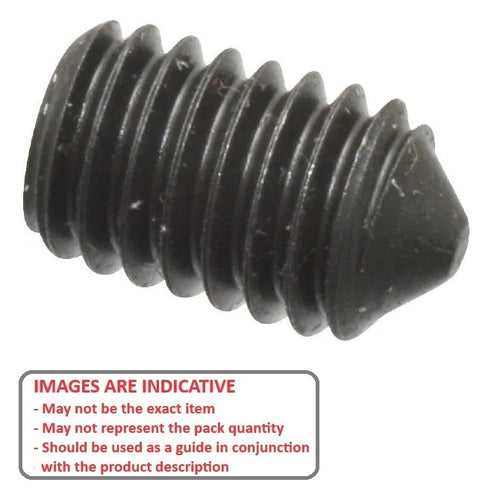

SS064C-0095-AS-CP - Datasheet

MBA

Product Data

• Thread Size : 1/4-20 UNC (6.35mm)

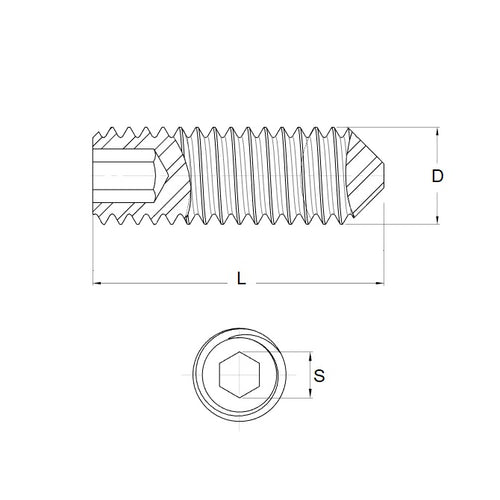

• Thread Length (L) 9.5 mm
  (Equiv. 0.374 in.)
• Type Cone Point
• Hex Key Size 3.18 (1/8)
• Pitch 1.270 mm
• Threads Per Inch 20 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel
