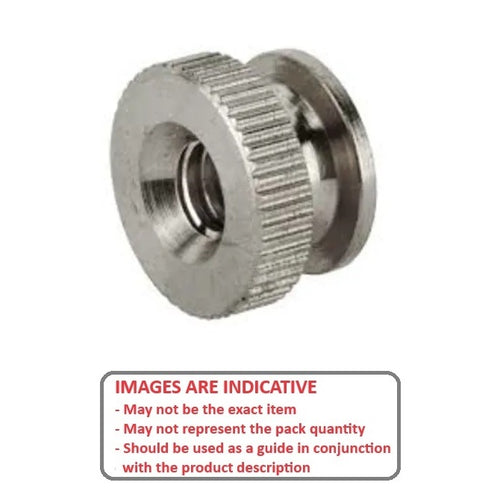

NT064C-THC-S3 - Datasheet

MBA

Product Data

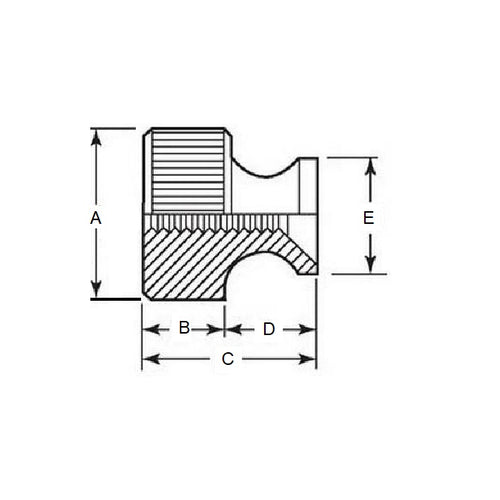

• Thread Size : 1/4-20 UNC (6.35mm)
• Overall Length (C) 9.5 mm
• Head Width (B) 3.97 mm
• Head Diameter (A) 14.29 mm
• Collar Diameter (E) 11.91 mm
• Collar Height (D) 5.56 mm
• Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 95150A170
• Reid Tool® AJ-761
• AJ761
