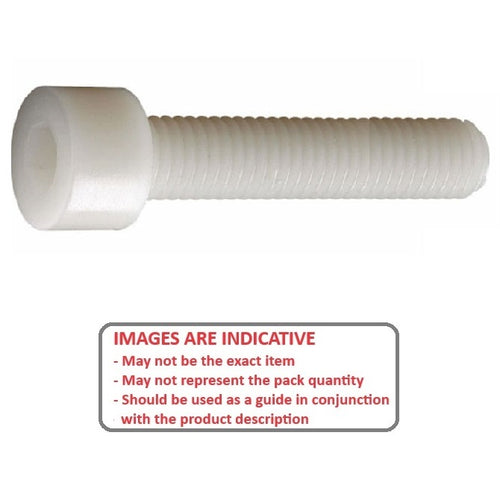

SC064C-076-C-SK-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 1/4-20 UNC (6.35mm)
• Thread Length (L) 76.2 mm
  (Equiv. 3 in.)
• Material Nylon
• Head Length (B Max.) 6.4 mm
• Head Diameter (A Max.) 9.5 mm
• Drive Depth (E) 3.05 mm
• Shank Diameter (C) 6.18 - 6.35 mm
• Hex Key (D) 4.76 (3/16) mm
• Pitch 1.270 mm
• Threads Per Inch 20 TPI
• Min thread Length 25.4 mm
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 95868A753
• MicroFast NSC1448
