SS064C-0064-AS-CP - Datasheet

MBA

Product Data

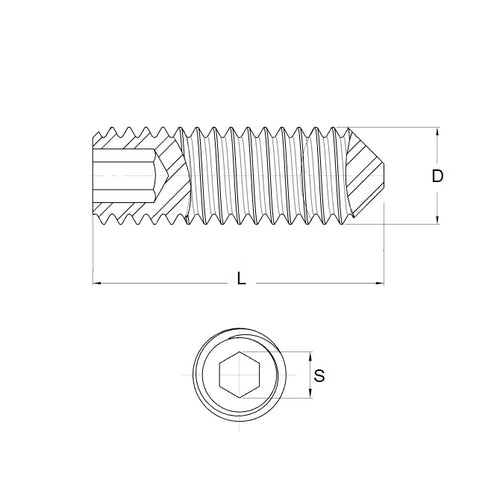

• Thread Size : 1/4-20 UNC (6.35mm)
• Thread Length (L) 6.4 mm
  (Equiv. 0.252 in.)
• Type Cone Point
• Hex Key Size 3.18 (1/8)
• Pitch 1.270 mm
• Threads Per Inch 20 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92695A302
• BRB-121091P
• BRB121091P
