KM064C-057-5L-SFT13-ST - Datasheet
MBA
Category Information

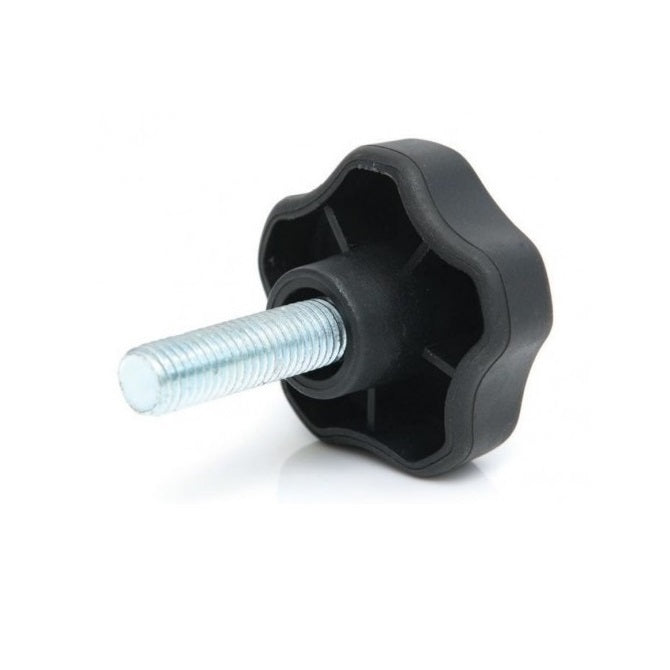

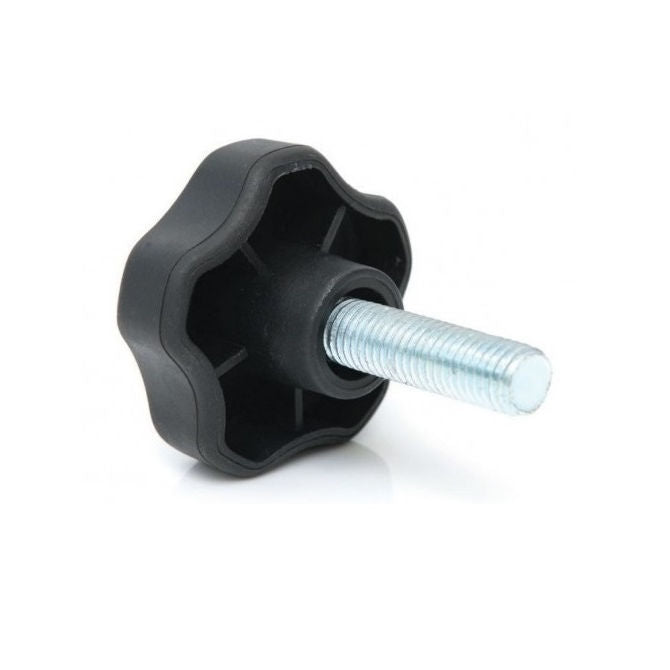

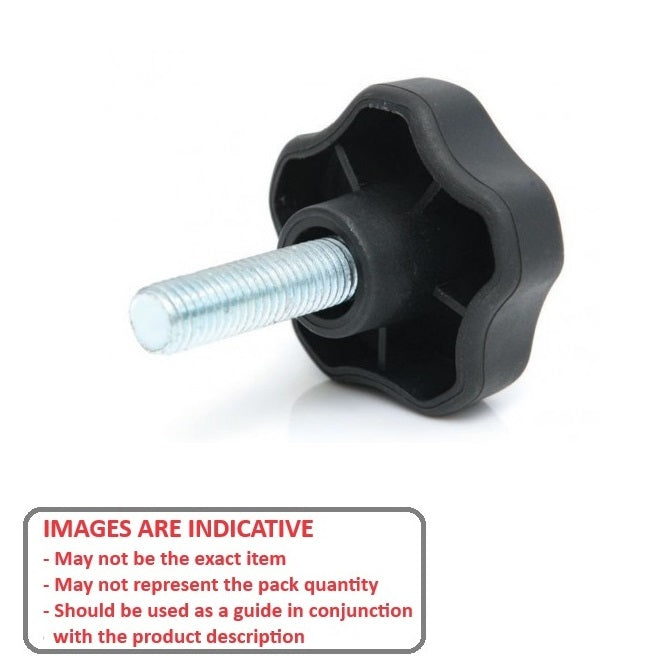

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Head Diameter (A)
57.15
mm
(Equiv. 2.25 in.) - Thread Length
12.7
mm
(Equiv. 0.5 in.) - Colour Black
- Hub Diameter (C) 31.75 mm
- Hub Length (D) 4.06 mm
- Knob Height (B) 27.69 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- RK-80
- RK80
