KF064C-057-CBL - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

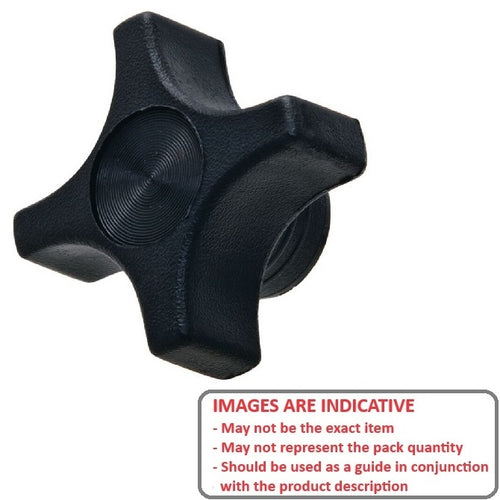

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 57.15 mm
  • Thread Length 12.7 mm
  • Colour Black
  • Hub Diameter (E) 25.40 mm
  • Hub Length (D) 11.11 mm
  • Knob Height (C) 25.40
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® DK-1190
  • DK1190
View full details

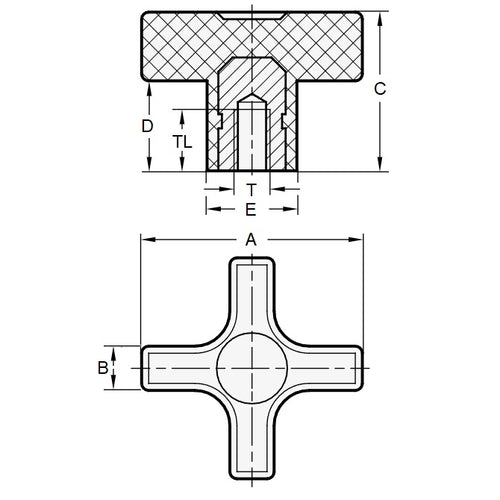

KF064C-057-CBLDiagramKF064C-057-CBLImage
