Miniature Bearings Australia
KM064C-055-3L-SFT - Datasheet
MBA
Category Information

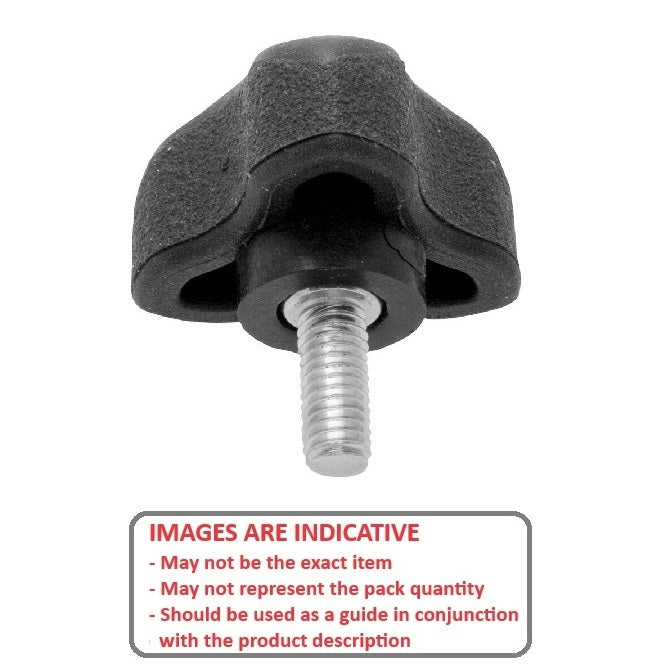

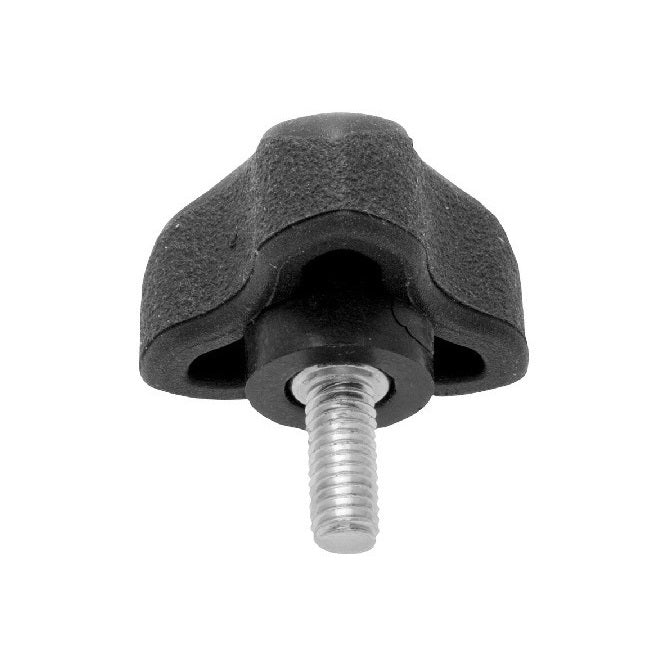

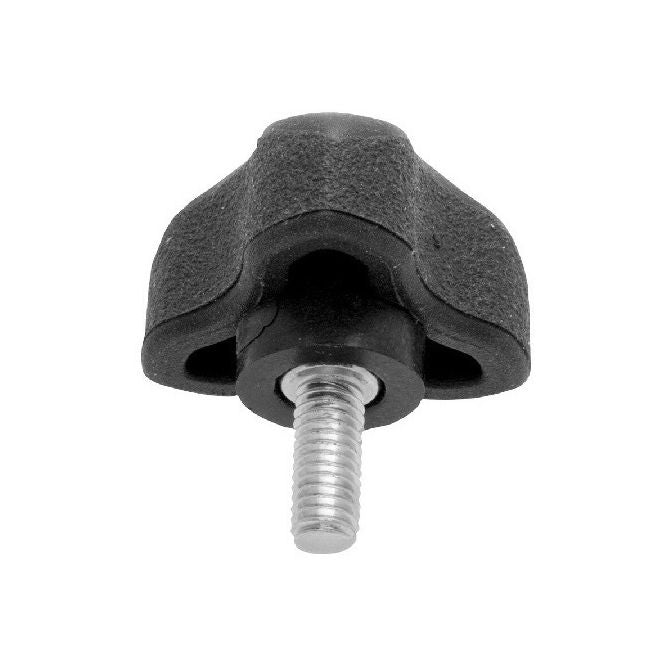

Knobs - Lobe - Three Lobe - Male - Soft TouchSoft Touch Male Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

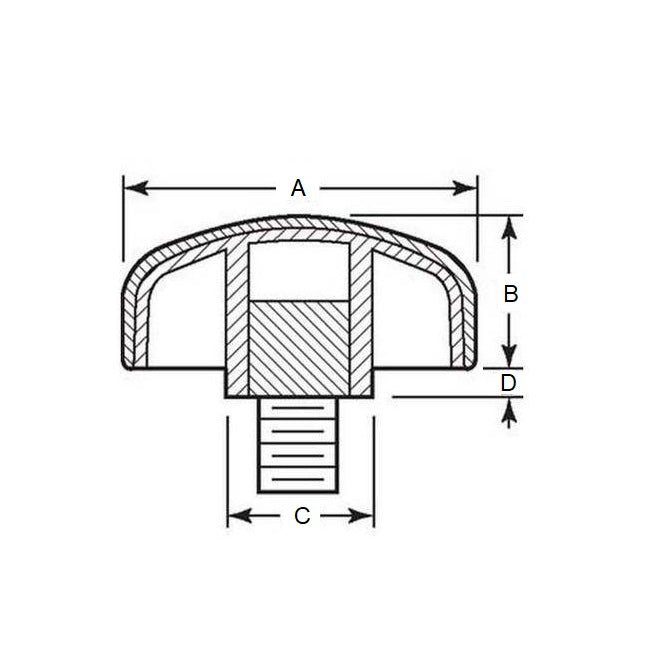

- Thread Size : 1/4-20 UNC (6.35mm)
- Head Diameter (A) 55.12 mm
- Thread Length 25.4 mm
- Colour Black
- Hub Diameter (C) 20.57 mm
- Hub Length (D) 3.81 mm
- Knob Height (B) 27.43 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® RK-326
- RK326
